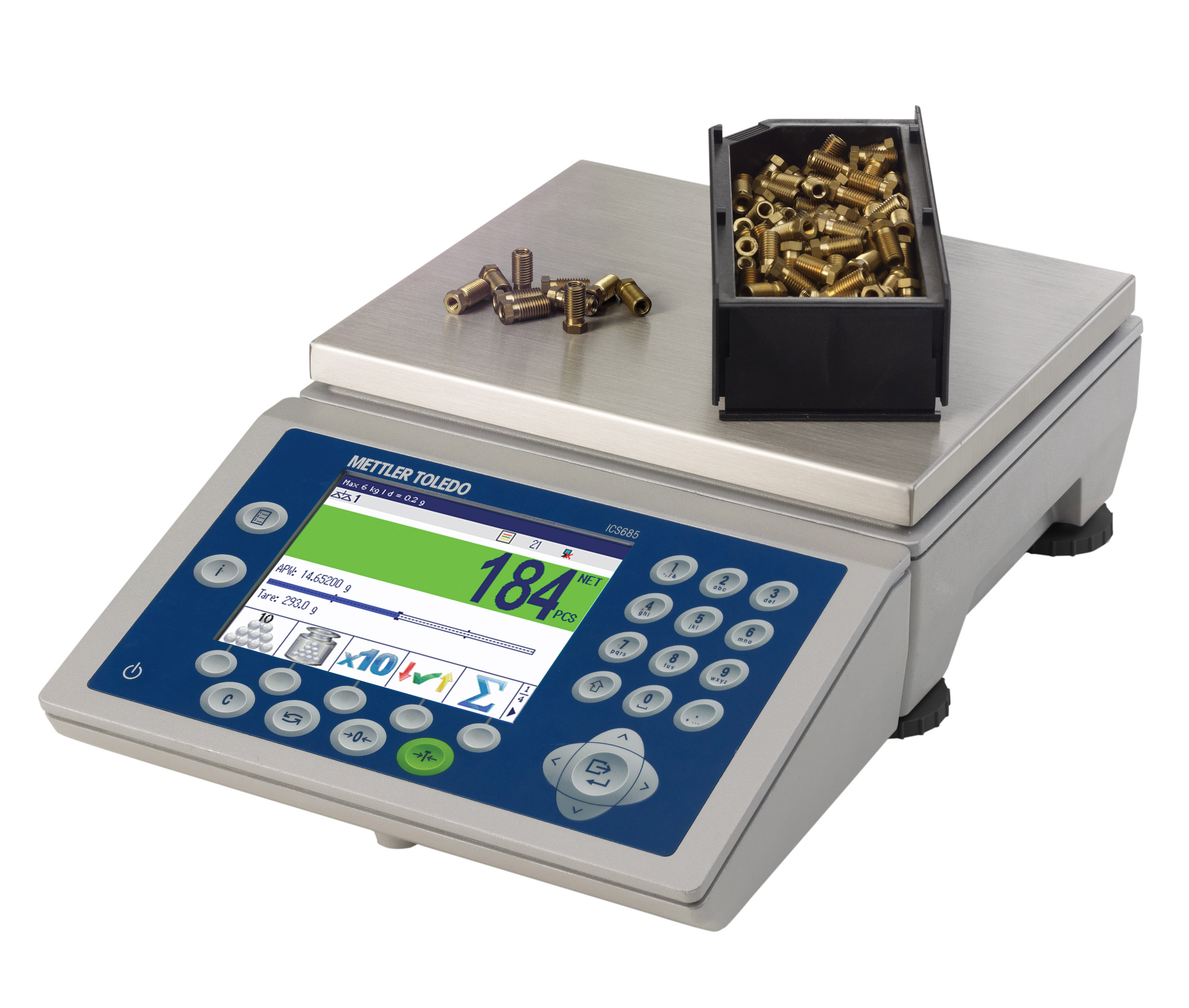

Compact Scale ICS685 MB

Aluminium diecast

IP54

No

Color TFT screen

Aluminum Diecast

RS232

Optional exchangeable battery;Die-cast aluminium housing, IP54;ColorWeight® function;Hardkeys can be deactivated to prevent incorrect key press;5 Configurable Softkeys;Date and time;Scale embedded database (up to 30,000 articles);Statistics software;User management function;User Prompting;Fully Automated Calibration Technology (FACT) for monoBloc Scales;Certifiable to NTEP Class II up to 60,000d;Numeric keypad;Routine tests: calibration checks, linearity, corner load test;Software to administer/manage database;Counting, Over/Under Checkweighing, Totalizing;Color TFT Display (320 x 240 pixels);2 selectable display modes;Alibi Memory/Transaction memory;Temperature check function

USB;Ethernet;RS422;RS485;WLAN;Discrete I/O

Battery Version;AC Version

No

MinWeigh: Minimum Weigh determination acc. your tolerance limits;Easy Scale Leveling: For fast & precise leveling;Smart Counting: Average Piece Weight Optimization;High Resolution: Special aluminum strain gauge load cell

Control Additional Platforms: Up to 4 platforms attachable;Variety of Interfaces: For easy process integration;Configurable Softkeys: Grants fast access to key functions;1 Standard & 3 Optional Interfaces: Serial, USB, Ethernet, WLAN, Dig. I/O

Powerful Database: Stores up to 5'000 articles;Comprehensive Statistics: Average Piece Weight, Min., Max. Values;Smart Printing: Predefined & User-definable print & label templates;Fast Data Import & Export: With USB Stick or directly via Ethernet

User Management: Settable user profiles;User Prompting: Control the process;Alibi Memory: Stores all weighing results;Intuitive User Guidance: Prevents from operator errors

Class III

Class III

Compact Scale

ICS685MB
