Analytical Balances

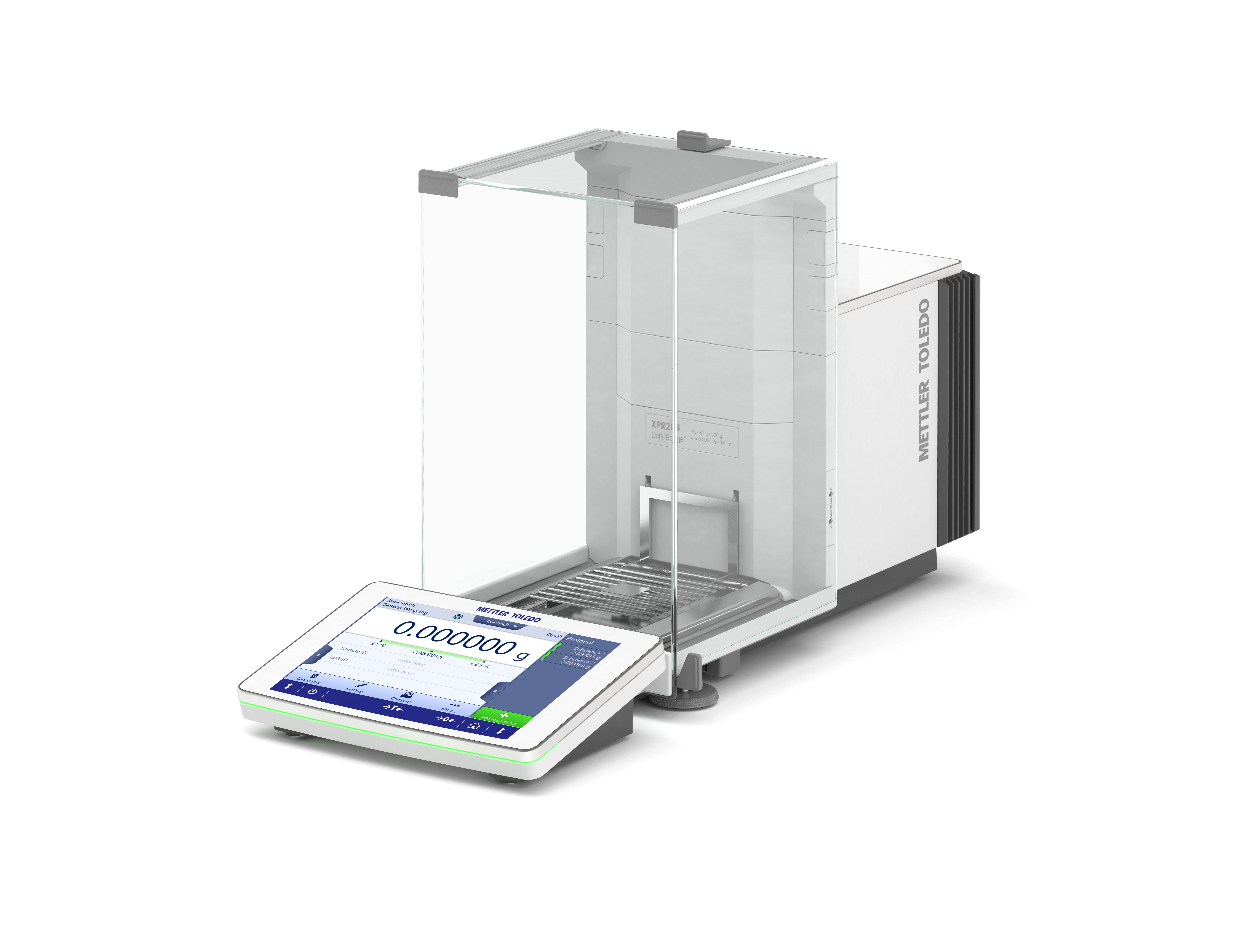

Comparator XPR226CDR/M
Manual mass comparator, 220 g / 121 g capacity, 10 µg / 5 µg readability, XPR terminal, ProFACT built-in adjustment, Motorized draft shield
Specifications
OIML Class
M1;M2;M3;F1;F2;E1;E2
Software
Optional MC Link 2 Mass Calibration Software
Adjustment
Internal (automatic/FACT)
GWP Weights CarePac available
Yes
Legal for Trade Class OIML
Class I
Maximum Capacity
220 g;121 g
Readability
0.01 mg;0.005 mg
Repeatability (Low Load) (5%)
4 µg
Repeatability nominal load
25 µg
Repeatability, typical
4 µg
Repeatability ABA at Nominal Load (Test Weight)
200 g
Repeatability ABA at Low Load (Test Weight)
10 g
Dimensions
195 mm
Dimensions
292 mm
Dimensions
485 mm
Weight
9.4 kg
Guaranteed Repeatability
0.01 mg
Linearity
0.1 mg
Linearity ±
0.1 mg
Minimum Weight (USP, 0.1%, typical)
8 mg
Repeatability (Test Weight)
0.01 mg;10 g
Settling Time
2 s
Weighing Pan Dimensions
73 mm
Weighing Pan Dimensions
78 mm
GWP Weight 1 Value
200 g
GWP Weight 2 Value
10 g
Documentation Options
Printing;Basic Electronic Documentation;Automatic Documentation (21 CFR Part 11 Compliant)
Compliance Options
Data Integrity;Log history (21 CFR Part 11 Compliant);Password protection;Alibi Memory;Log history (Basic Metadata)
Automatic Static Detection
Yes
User Management
Password Protection;User Rights;Unlimited Amount of Users
Balance Line
XPR
Interfaces
USB-B (to device);RS232 (integrated / optional);USB-A (to device);Bluetooth (optional);Ethernet (LAN)
Balance Type
Analytical Balance
Legal for Trade
Yes
Price
$$$
Family
Excellence
21 CFR Part 11 Compliant Weighing
Yes
Automation Options
Automated Powder Dispensing;Automated Workflows;Automated Liquid Dispensing
Repeatability ABA at Nominal Load
20 µg
Repeatability ABA at Low Load
5 µg
