Mass Comparators & Metrology

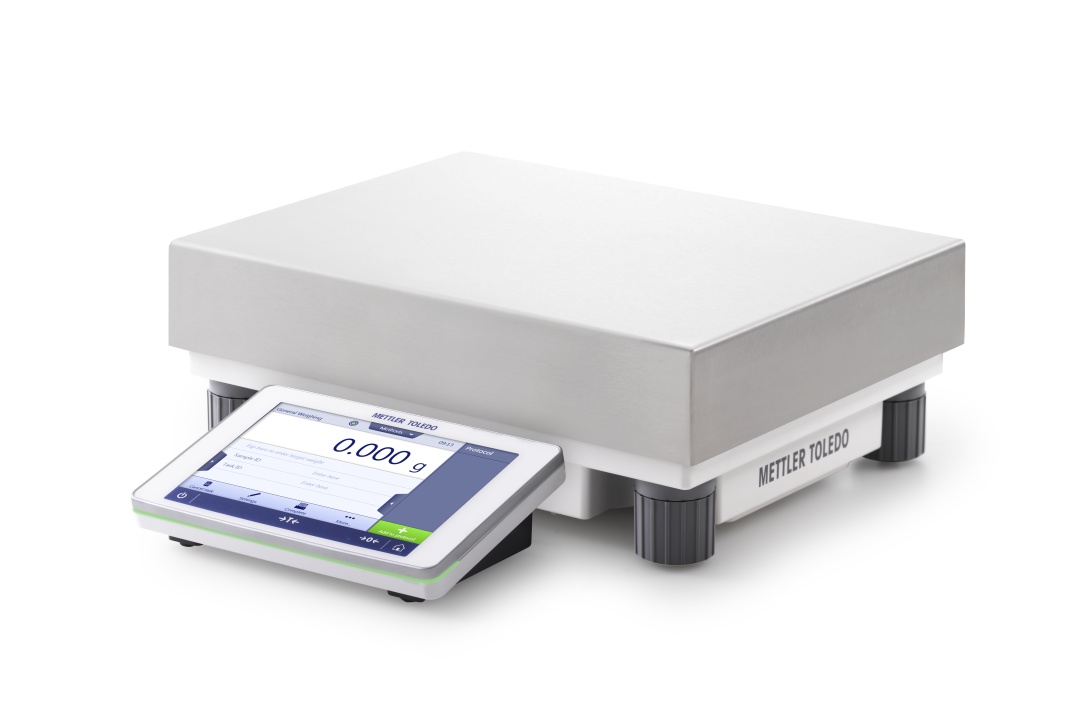

Comparator XPR32003LD5C

Name: Comparator XPR32003LD5C
Brand: METTLER TOLEDO

It comes with 32.1 kg capacity and 5 mg readability. The main benefits are: Highly accurate Mass Determination, Minimized Weighing Errors, Secure Data Transfer and highly ergonomic Operation.

CategoryMass Comparators & Metrology

IndustryTesting Labs, Academia

ReferenceCOMPARATOR-XPR32003LD5C

Request a Quote →

Specifications

OIML Class

M1;M2;M3;F1;F2

Software

Optional MC Link 2 Mass Calibration Software

Adjustment

Internal (automatic/FACT)

Battery operation

Display

7" colour TFT touchscreen

Preferred Model

Top Performance

Terminal Size

7 inch

User management / Audit Trail

Yes

Weighing Pan Size (DxW) or Diameter

360.00 mm x 280.00 mm

Maximum Capacity

32.1 kg

Readability

5 mg

Repeatability nominal load

15 mg

Repeatability, typical

6.5 mg

Repeatability ABA at Nominal Load

8 mg

Repeatability ABA at Low Load

5 mg

Guaranteed Repeatability

15 mg

Linearity

20 mg

Minimum Weight (USP, 0.1%, typical)

13 g

Settling Time

8 s

Weight Handler

None

Draftshield

Optional

Interfaces

USB-B (to device);RS232 (integrated / optional);USB-A (to device);Bluetooth (optional);Ethernet (LAN)

User Management

Password Protection;User Rights;Unlimited Amount of Users

Legal for Trade

Balance Line

XPR

21 CFR Part 11 Compliant Weighing

Yes

Compliance Options

Data Integrity;Log history (21 CFR Part 11 Compliant);Password protection;Log history (Basic Metadata)

Price

$$$

Documentation Options

Printing;Basic Electronic Documentation;Automatic Documentation (21 CFR Part 11 Compliant)

Family

Excellence

Balance Type

Precision Balance

Level

Excellence

Features

Password protection;Leveling guidance;Supports 21 CFR Part 11 (LabX compatible);User management

Approved Balance

Platform

Beta (Fine range)

0.00005622 g

Alpha (Fine range)

0.01080123 g
