pH & Electrochemistry

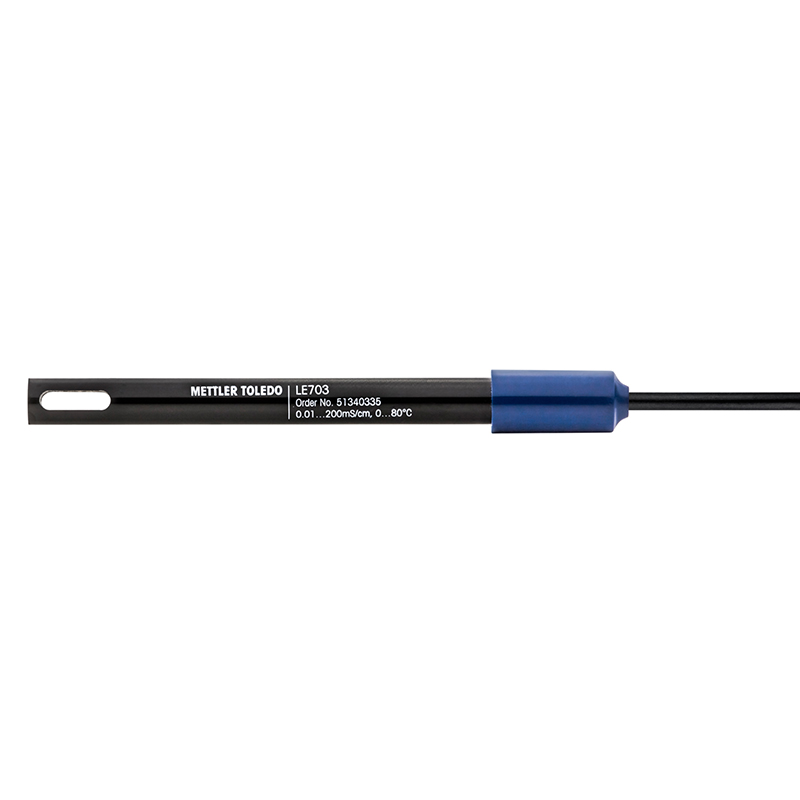

Cond probe LE703
Robust conductivity probe for medium to high conductivities (10 μS/cm–200 mS/cm).
Specifications
Measuring range
0.01 – 200 mS/cm
Connector
Mini-DIN
Cell type
4 graphite poles
Cell Constant
0.55 cm-1
Shaft Material
Epoxy
Sensor Type
4 graphite poles
Parameter
Conductivity
Intelligent Sensor Management (ISM®)
No
Temperature probe
NTC 30 kΩ
For Portable Meter
No
Low Maintenance
Yes
Signal type
Analog
Sample
General Purpose
Cable and connectors
1.0 m Mini-DIN
Shaft length
120 mm
Shaft Diameter
12 mm
Cable {Length}
1 m
Temperature Range
0 °C – 80 °C
Base Unit Temperature Range
0 °C – 80 °C
Connector on Sensor
Fixed 1 m cable
Connector to Meter
Mini-DIN
Cable Included
Yes
Long Cable
No
Sample Conductivity
>100 uS/cm
Sensor Characteristics
Temperature Probe;Standard sensor;Analogue;Mechanically robust
Presence of Harsh Chemicals
No
Recommended Meters
FiveEasy
Recommended Meter Models
FP30
Unique Sensor Purpose
High Conductivity
