pH & Electrochemistry

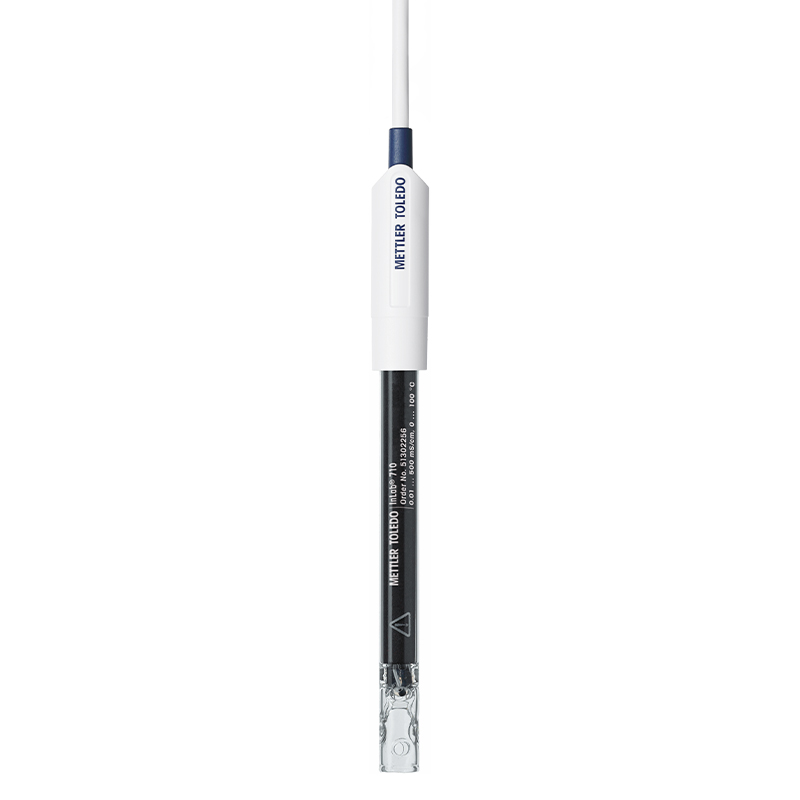

Cond Sensor InLab® 710
A 4 platinum poles conductivity cell with a chemical resistant glass body and integrated temperature probe. Designed for aggressive or organic samples.
Specifications
Measuring range
0.01 – 500 mS/cm
Connector
Mini-DIN
Cell type
4 platinum poles
Cell Constant
0.80 cm-1
Shaft Material
Glass
Parameter
Conductivity
Intelligent Sensor Management (ISM®)
No
Temperature probe
NTC 30 kΩ
For Portable Meter
No
Low Maintenance
Yes
Signal type
Analog
Sample
High-ion strength
Shaft length
120 mm
Shaft Diameter
12 mm
Cable {Length}
1.2 m
Temperature Range
0 °C – 100 °C
Connector on Sensor
Fixed 1 m cable
Connector to Meter
Mini-DIN
Cable Included
Yes
Long Cable
No
Sample Conductivity
>100 uS/cm
Sensor Characteristics
Chemically robust;Temperature Probe;Premium Sensor;Analogue
Presence of Harsh Chemicals
Yes
Product Line
Excellence Titrators
Measurement Type
Conductometric
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go;NineFocus
Recommended Meter Models
S3;NF2300;SG23;SG78;SD23;S7;SD30;NF3000;NF2340
Unique Sensor Purpose
High Conductivity and Harsh Chemicals
Application Notes
Li-Ion Battery Electrolyte
Links to Application Notes
https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/conductivity-of-battery-electrolyte.html
