Density & Refractometry

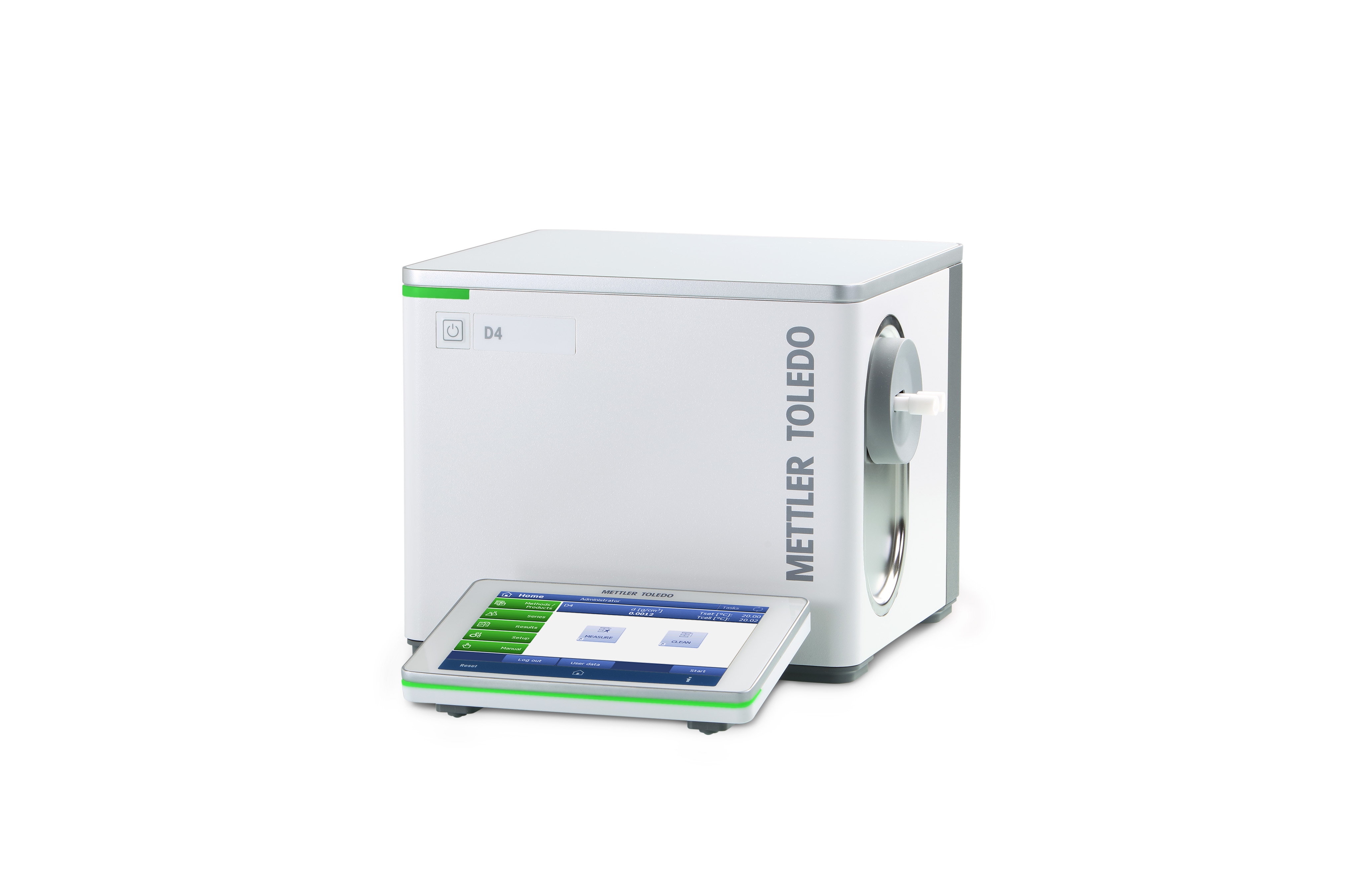

Density meter Excellence D4

Name: Density meter Excellence D4
Brand: METTLER TOLEDO

Accurate, intuitive, and modular, the Excellence D4 offers fast measurements with automatic temperature control, a real-time video view of the measuring cell and automatic viscosity correction. Everything via an incredibly easy-to-use user interface.

CategoryDensity & Refractometry

IndustryFood & Feed, Pharma, Petro Chemical, Testing Labs

ReferenceDENSITY-METER-EXCELLENCE-D4

Request a Quote →

Specifications

Repeatability (g/cm³)

0.00005 g/cm3

Resolution (g/cm³)

0.0001 g/cm3

Temperature control

Yes

Measurement Scales

Density, Specific gravity, Alcohol, Acid, API, Sugar, Urea, User-defined concentration;Up to 30 user-defined concentration tables (can be entered as tables or formulas).

Integrated drying pump

Integrated pressure sensor

Yes

Video view

Yes

Automatic sample detection

Yes

Clean check

Yes

Automatic bubble detection (BubbleCheck™)

Yes

Automatic viscosity correction

Yes

Color-coded result identification

Yes

On-screen help texts

Yes

User Management

Yes

Barcode reader connectivity

Yes

Languages

English;Italian;French;Russian;Polish;Portuguese;Chinese;German;Spanish

Display / User interface

7" display with color touchscreen

Connectivity

HDMI (Terminal);USB client (PC Software);Ethernet (Network and PC Software);3 × USB host (printer, memory stick, barcode reader, hub, keyboard, mouse);RS232 (Automation units);CAN (Multiple LevelSens)

PC Software

LabX Express and Server

Dimensions (Width x Height x Depth)

267 x 226 x 256 mm

Standard compliance

www.mt.com/dere-norms

Note:

Accuracy valid under ideal conditions and for samples with low densities and viscosities

Accuracy ± (g/cm³)

0.0001 g/cm3

Minimum Sample Volume

1.5 mL

Weight

17.5 kg

Measurement range (g/cm³)

0 g/cm3 – 3 g/cm3

Temperature Control Range

0 °C – 95 °C

Automation for Enhanced Workflow

Autosampler (up to 303 samples);Multiparameter (refractive index, color, pH, etc);Sampling and cleaning (1 sample)

Built-in Measurement Scales

Density/Specific gravity;Alcohol tables;Acids/bases and chemical tables;User programmable tables/functions;Brix/Sugar tables

Compliance / Data Security

Audit Trail (requires LabX software);Data integrity (requires LabX software);21 CFR part 11 / EU Annex 11 (requires LabX software)

LIMS connectivity

Yes

Minimum Sample Volume

1.50 mL

Norms and Standards

Ph. Eur. 2.2.5;DIN EN ISO 3675;ISO 2811-3;AOAC Official Method 988.06;IP 200/52;GBT 11540-2008;ASTM D 4806;API Std 2540;ASTM D 1475;USP chapter 841 (as of USP 29);GB/T 2013-2010;ISO 18301;EN 14214:2003;ASTM D 2501;ASTM D 6448;ASTM D 1250;DIN 51757;Chinese pharmacopoeia 0601;GB/T 13531.4-2013;ISO/EN 15212-1;ISO 12185-2;Pharm. Eu. (2005) JP (2005) USP (2006);IP 365;ASTM D 5002;ISO 91;ANSI 1250;GB5009.225—2016;ASTM D 4052;OIV Analysis method for density measurement in wine and musts;ASTM D5931;OIV MA-BS-03 and/or MA-BS-03;JJF1070-2005

Product Type

Benchtop Density Meter

Product Line

Excellence
