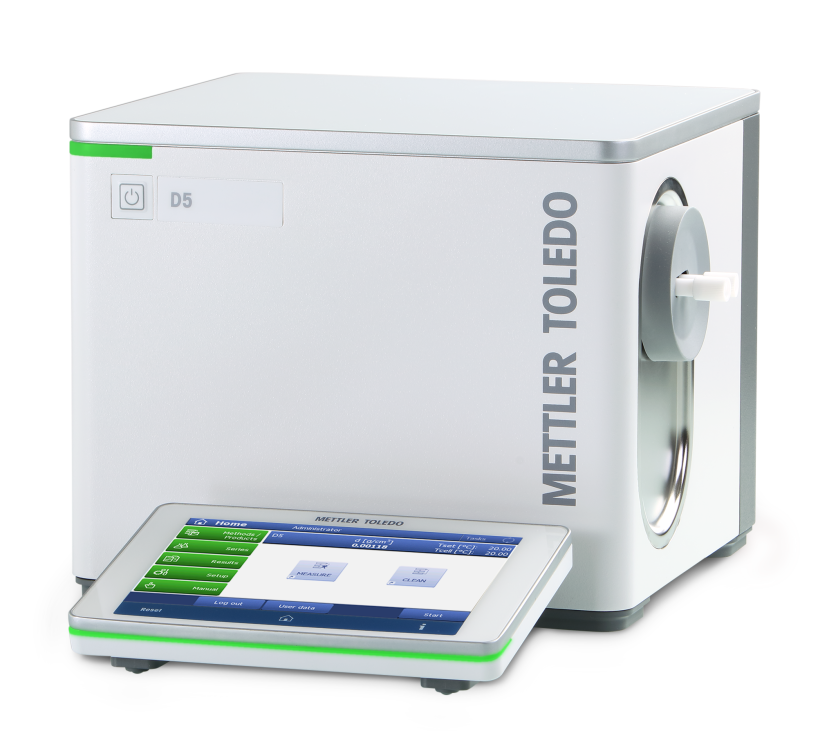

Density meter Excellence D5

Name: Density meter Excellence D5
Brand: METTLER TOLEDO

Accurate, intuitive, and modular, the Excellence D5 offers fast measurements with automatic temperature control, a real-time video view of the measuring cell and automatic viscosity correction. Everything via an incredibly easy-to-use user interface.

CategoryDensity & Refractometry

IndustryFood & Feed, Pharma, Petro Chemical, Testing Labs

ReferenceDENSITY-METER-EXCELLENCE-D5

Request a Quote →

Specifications

Repeatability (g/cm³)

0.000005 g/cm3

Resolution (g/cm³)

0.00001 g/cm3

Temperature control

Yes

Integrated drying pump

Integrated pressure sensor

Yes

Video view

Yes

Automatic sample detection

Yes

Clean check

Yes

Automatic bubble detection (BubbleCheck™)

Yes

Automatic viscosity correction

Yes

Color-coded result identification

Yes

On-screen help texts

Yes

Barcode reader connectivity

Yes

Languages

English;Italian;French;Russian;Polish;Portuguese;Chinese;Korean;German;Spanish

Display / User interface

7" display with color touchscreen

Connectivity

HDMI (Terminal);USB client (PC Software);Ethernet (Network and PC Software);3 × USB host (printer, memory stick, barcode reader, hub, keyboard, mouse);RS232 (Automation units);CAN (Multiple LevelSens)

PC Software

LabX Express and Server

Dimensions (Width x Height x Depth)

267 x 226 x 256 mm

Standard compliance

www.mt.com/dere-norms

Note:

Accuracy valid under ideal conditions and for samples with low densities and viscosities

Accuracy ± (g/cm³)

0.00005 g/cm3

Minimum Sample Volume

1.5 mL

Weight

17.5 kg

Measurement range (g/cm³)

0 g/cm3 – 3 g/cm3

Temperature Control Range

0 °C – 95 °C

Automation for Enhanced Workflow

Autosampler (up to 303 samples);Multiparameter (refractive index, color, pH, etc);Sampling and cleaning (1 sample)

Built-in Measurement Scales

Density/Specific gravity;Alcohol tables;Acids/bases and chemical tables;User programmable tables/functions;Brix/Sugar tables

Compliance / Data Security

Audit Trail (requires LabX software);Data integrity (requires LabX software);21 CFR part 11 / EU Annex 11 (requires LabX software)

LIMS connectivity

Yes

Minimum Sample Volume

1.50 mL

Norms and Standards

Ph. Eur. 2.2.5;DIN EN ISO 3675;ISO 2811-3;AOAC Official Method 988.06;AOAC Official Methods of Analysis 950.28, 982.10 (17th Ed);IP 200/52;GBT 11540-2008;ASTM D 4806;API Std 2540;ASTM D 1475;USP chapter 841 (as of USP 29);GB/T 2013-2010;European Union Spirits drinks: COMMISSION REGULATION (EC) No 2870/2000;European Union Wines: COMMISSION REGULATION (EC) No 128/2004;ISO 18301;European Union Wines: COMMISSION REGULATION (EEC) No 2676/90;EN 14214:2003;OIV MA-BS-04 and/or MA-BS-04OIV MA-BS-06 and/or MA-BS-06;ASTM D 2501;ASTM D 6448;ASTM D 1250;ASBC Beer-2;ASBC Beer-5;DIN 51757;Chinese pharmacopoeia 0601;GB/T 13531.4-2013;ISO/EN 15212-1;ISO 12185-2;Pharm. Eu. (2005) JP (2005) USP (2006);AOAC Official Methods of Analysis 920.57, 920.62 (17th Ed);IP 365;ASTM D 5002;ISO 91;ANSI 1250;GB5009.225—2016;ASTM D 4052;OIV Analysis method for density measurement in wine and musts;ASTM D5931;OIV MA-BS-03 and/or MA-BS-03;JJF1070-2005;OIV Alcohol content in wine and musts

Product Type

Benchtop Density Meter

User Management

Yes
