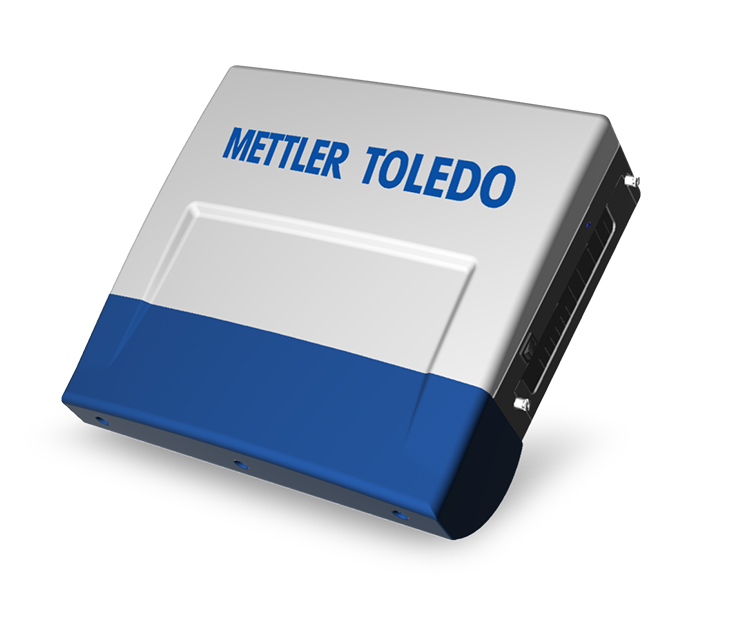

Dimensioner Head 800S
The 800-S dimensioner is used as part of our static dimensioning systems to achieve best-in-class measurement of parcels and pallets
Specifications
Dimensional accuracy (LxWxH)
MID: ± 10x10x10 mm, NTEP: Objects up to 72x72x72 in: d = 0.25 in, objects above 72x72x72 in: d = 0.5 in
Min. LFT Size (LxWxH)
MID: 200x200x100 mm, NTEP: 12x8x3 in
Throughput
Approx. 240 pallets per hour
Object shape
All solid shapes
Object surface
Most surfaces, including black
Orientation
Most stable surface down within defined field-of-view
Background
Flat, continuous surface
Spacing
Objects are placed under the dimensioner one by one
Light Source
Laser diode, red, wavelength 660 nm
Laser
Class II (2)
Key features
- Max. LFT Size (LxWxH):
- OIML:
INQUIRY
Get a tailored quote for the Dimensioner Head 800S.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to your sector will respond within one business day.
