Transport & Logistics

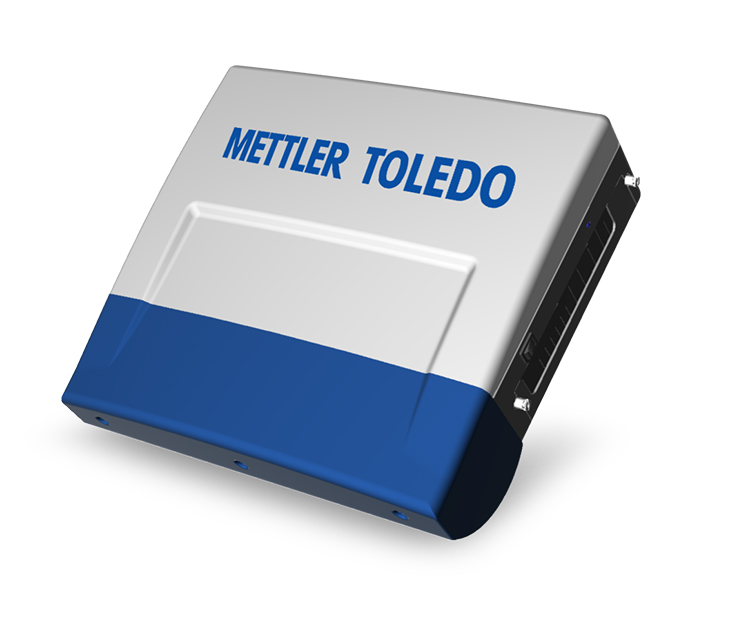

Dimensioner Head 800S Refurbished
800-S Refurbished Static Dimensioner to replace a unit that has failed or been sent for repair.
Specifications
Dimensional accuracy (LxWxH)
MID: ± 10x10x10 mm, NTEP: Objects up to 72x72x72 in: d = 0.25 in, objects above 72x72x72 in: d = 0.5 in
Min. LFT Size (LxWxH)
MID: 200x200x100 mm, NTEP: 12x8x3 in
Throughput
Approx. 240 pallets per hour
Object shape
All solid shapes
Object surface
Most surfaces, including black
Orientation
Most stable surface down within defined field-of-view
Background
Flat, continuous surface
Spacing
Objects are placed under the dimensioner one by one
Light Source
Laser diode, red, wavelength 660 nm
Laser
Class II (2)
Key features
- Max. LFT Size (LxWxH):
- OIML:
INQUIRY
Get a tailored quote for the Dimensioner Head 800S Refurbished.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to your sector will respond within one business day.
· Transport & LogisticsDimensioner Head 800S Refurbished
