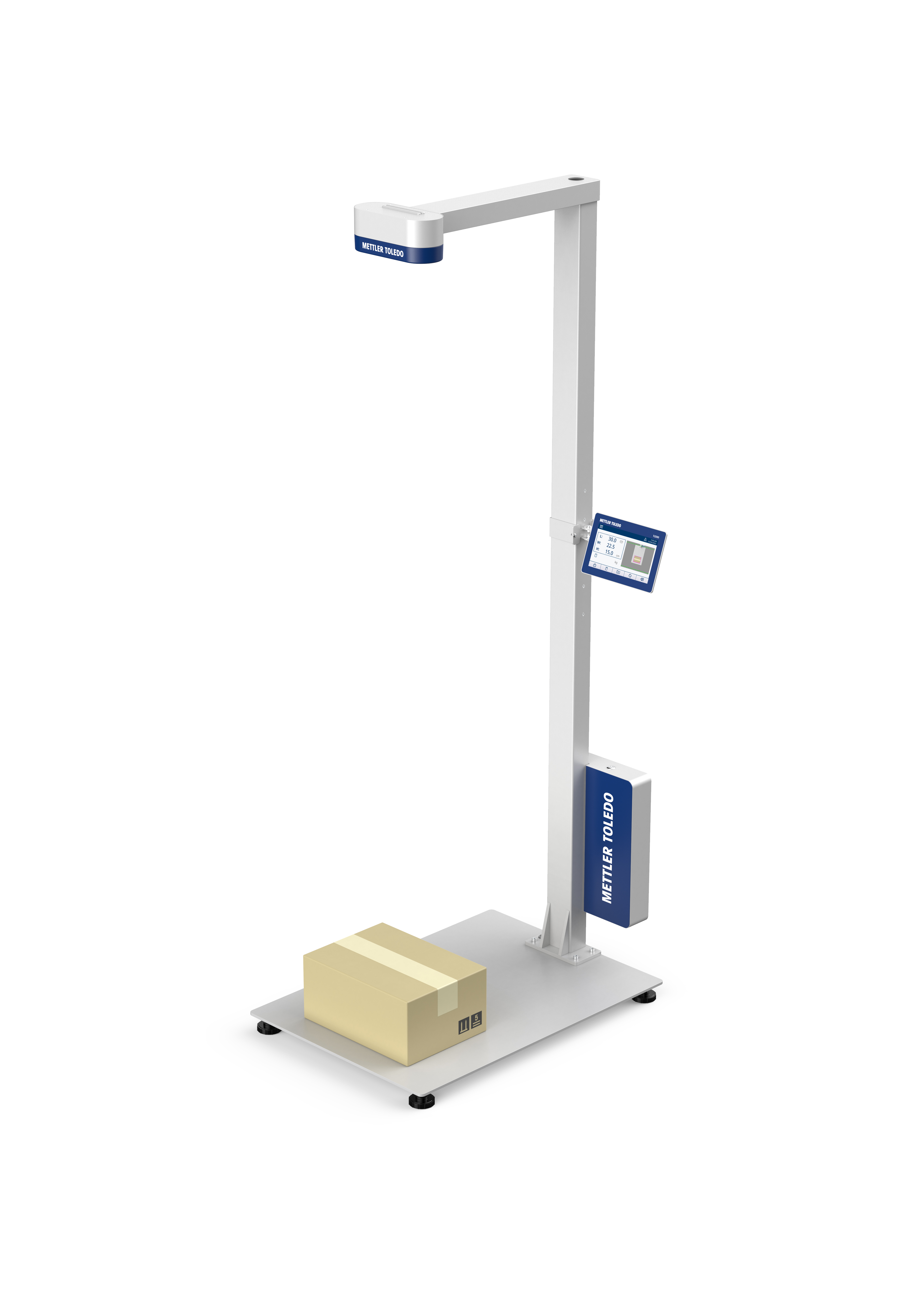

Dimensioner TLD250-156U-1312-120-00

Name: Dimensioner TLD250-156U-1312-120-00
Brand: METTLER TOLEDO

Camera dimensioner, 156 cm camera height, rugged column and base plate with feet, 0272 TFT color touchscreen display, adjustable bracket, OIML, USB/Serial/Ethernet/Bluetooth communication, multiply protocols, keyboard wedge, universal power supply.

CategoryTransport & Logistics

Industry

ReferenceDIMENSIONER-TLD250-156U-1312-120-00

Request a Quote →

Specifications

Accuracy Cuboidal Object

0.5 cm (0.2 in)

Accuracy Non-Cuboidal Object

1.0 cm (0.5 in)

Maximum object size (L x W x H)

100 x 60 x 60 cm (39 x 24 x 24 in)

Minimum object size (L x W x H)

6 x 6 x 6 cm (2.4 x 2.4 x 2.4 in)

Working Environment

0° to 35°C (32° to 95°F) / Non-condensing

Object shape

Cuboidal and non-cuboidal objects cylinder, donut, polygon, stacked or combined

Object surface

All opaque packaging

Measurement Time

1- 2 seconds

Display

7" colour TFT touchscreen

Power Supply

100 … 240 VAC, 50/60Hz

Interfaces

RS-232;USB;Ethernet;Bluetooth (optional)

Input Voltage Power Consumption

12 VDC / 5A / 60 W

Dimensioning Method

Static

Approvals

UL/cUL;NTEP, EC/OIML, MC;CE compliant
