Melting & Dropping Point

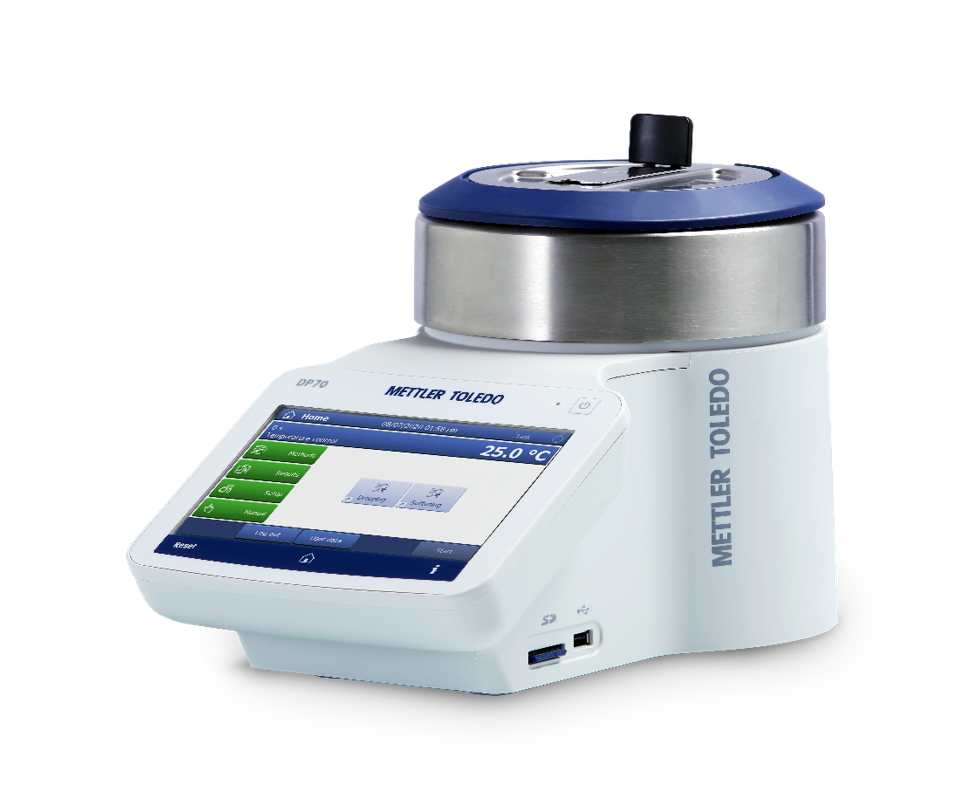

Dropping Point System DP70
The DP70 offers simultaneous dropping and softening point determination of two samples up to a maximum temperature of 400 °C.
Specifications
Temp. Range {text}
RT – 400 °C
Number of One Clicks™
12 Per User
Application Type
Dropping Point;Softening Point
Data Export
to SD Card, USB Stick or PC
PDF Reports
Yes
User Management
Password Protection;Protection of Settings;Multiple Users
Video
color, 120 minutes
Max. number of methods
60
Display / User interface
7" color display with touchscreen
Languages
English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean
Dimensions (Width x Height x Depth)
19 x 35 x 23 cm
Standards 1
IP396;DIN 51920;ASTM D3461;ISO 4625-2;ASTM D3104;ASTM D6090;ASTM D3954;AOCS Cc 18-80;Ph. EUR 2.2.17
Standard compliance
www.mt.com/mpdp-norms
Number of Cups
2
Stored Results
100
Substances in database
100
Weight
4 kg
Heating Rate (/min)
0.1 °C – 20 °C
INQUIRY
Get a tailored quote for the Dropping Point System DP70.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Pharma will respond within one business day.
