Industrial Scales & Platforms

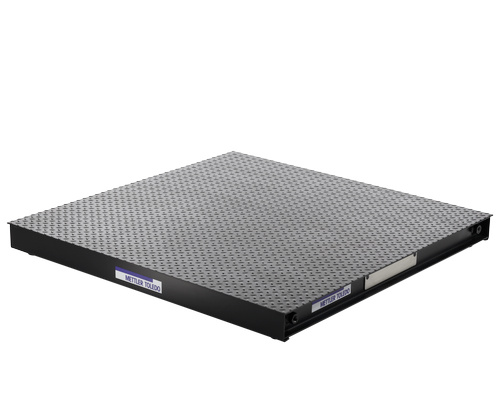

Floor Scale PFA261 S MT 5K 48X48
Floor Scale PFA261 S MT 5K 48X48
Specifications
Material
Mild Steel (epoxy painted, tread plate deck finish)
Protection Rating
IP64
Hazardous Approval
No
Scale Interface
Analog
Floor Scale Type
All Floor Scales;Basic Floor Scales
Environment
Dry (<IP65)
Hazardous Area
Non-hazardous area
Legal for Trade
NTEP
Dimensions/Platform Size
from 41" to 59.9";from 1,001 to 1,500 mm
Performance Optimization
Reliable Weighing Technology: Robust stainless hermetic seal load cell
Versatility
Weighing Platform: For basic weighing tasks in dry environment
Legal for Trade Class NTEP
Class III
Platform Type
Floor scale
Accessories
Free-standing columns;Ramps
Approvals
Measurement Canada Approval pending;NTEP 5000d, Class III, COC #99-132 (Only 2,500 and 5,000 lb. capacities)
Hygienic Design
No
Standard Features
25 ft plain end instrument cable;Standard Industrial Warranty;Stainless Steel version comes standard with Tread plate;Foot locating plates;Threaded Ball-in-Cup foot
Maximum Capacity
5,000 lb
Maximum Capacity
3,000 kg
Readability
1 lb
Readability
1,000 g
Readability (Certified)
1 lb
Repeatability
1 lb
Repeatability
1 kg
Platform Size
48 in
Platform Size
1,219 mm
Platform Size
48 in
Platform Size
1,219 mm
Platform Size
4.5 in
Dimensions
48 in
Dimensions
1,219 mm
Dimensions
48 in
Dimensions
1,219 mm
Dimensions
4.5 in
Dimensions
114 mm
Cable {Length}
25 ft
Repeatability, typical
1 kg
Repeatability, (typical)
1 lb
Repeatability (sd)
1 lb
Repeatability (sd)
1 kg
INQUIRY
Get a tailored quote for the Floor Scale PFA261 S MT 5K 48X48.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
