Industrial Scales & Platforms

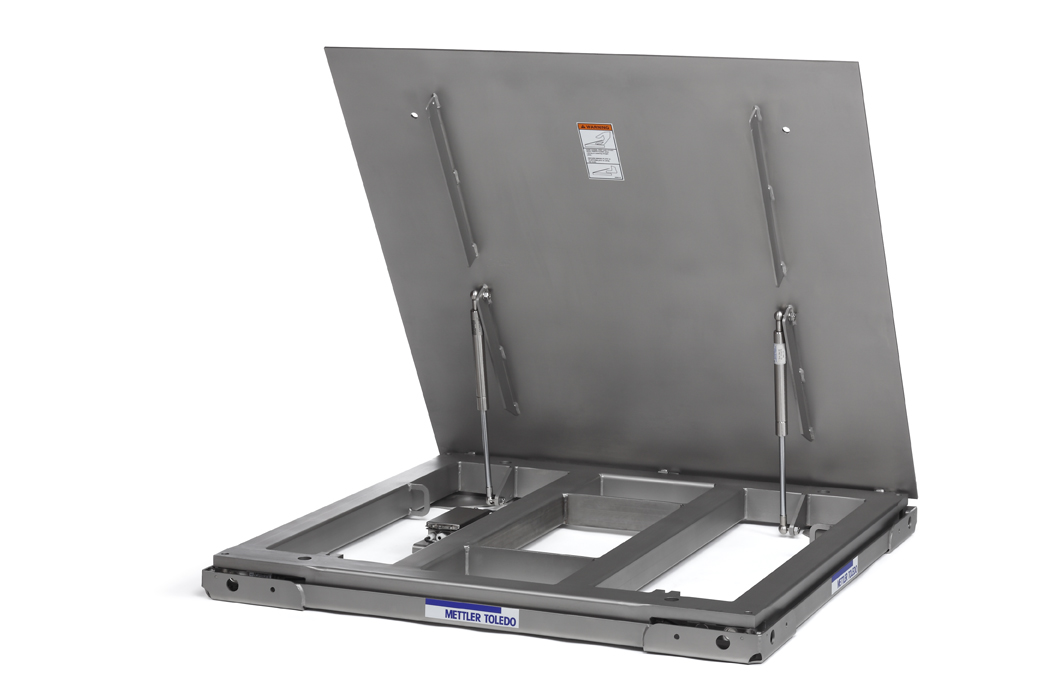

Floor Scale PFA579 L SS 1K 48X48
Floor Scale PFA579 L SS 1K 48X48
Specifications
Material
Stainless 304 Glass Bead Blasted Smooth
Protection Rating
IP69k;IP68
Hazardous Approval
No
Scale Interface
Analog
Floor Scale Type
Hygienic Lift Floor Scales;All Floor Scales
Environment
Wet & Harsh Wet (>/=IP66)
Hazardous Area
Non-hazardous area
Legal for Trade
NTEP;OIML
Dimensions/Platform Size
from 41" to 59.9";from 1,001 to 1,500 mm
Legal for Trade Class NTEP
Class III
Legal for Trade Class OIML
Class III
Platform Type
Floor Platform
Accessories
Ramps;Pit liners;Optional ALGRIP™ or SlipNOT® deck plate available;Quick-Pit frames;Scale guard frame protectors
Approvals
Factory Mutual (FM) Hazardous Area Approval;NTEP 5000d, Class III, COC #97-153
Hygienic Design
Yes
Standard Features
25 ft plain end instrument cable;Model 745A stainless steel hermetically sealed 2 mV/V load cells;IP69K stainless steel summing junction box;Easy access for cleaning;Fully sealed tubular frame;Gas-pressurized lifting struts for easy lifting;Rocker Pin Suspension
Maximum Capacity
1,000 lb
Maximum Capacity
600 kg
Readability
0.1 lb
Readability
100 g
Readability (Certified)
200 g
Readability (Certified)
200 g
Repeatability
0.1 lb
Repeatability
50 g
Platform Size
48 in
Platform Size
1,219 mm
Platform Size
48 in
Platform Size
1,219 mm
Platform Size
3.88 in
Platform Size
98 mm
Dimensions
48 in
Dimensions
1,219 mm
Dimensions
48 in
Dimensions
1,219 mm
Dimensions
3.88 in
Dimensions
98 mm
Repeatability, typical
50 g
Repeatability, (typical)
0.1 lb
Repeatability (sd)
0.1 lb
Repeatability (sd)
50 g
