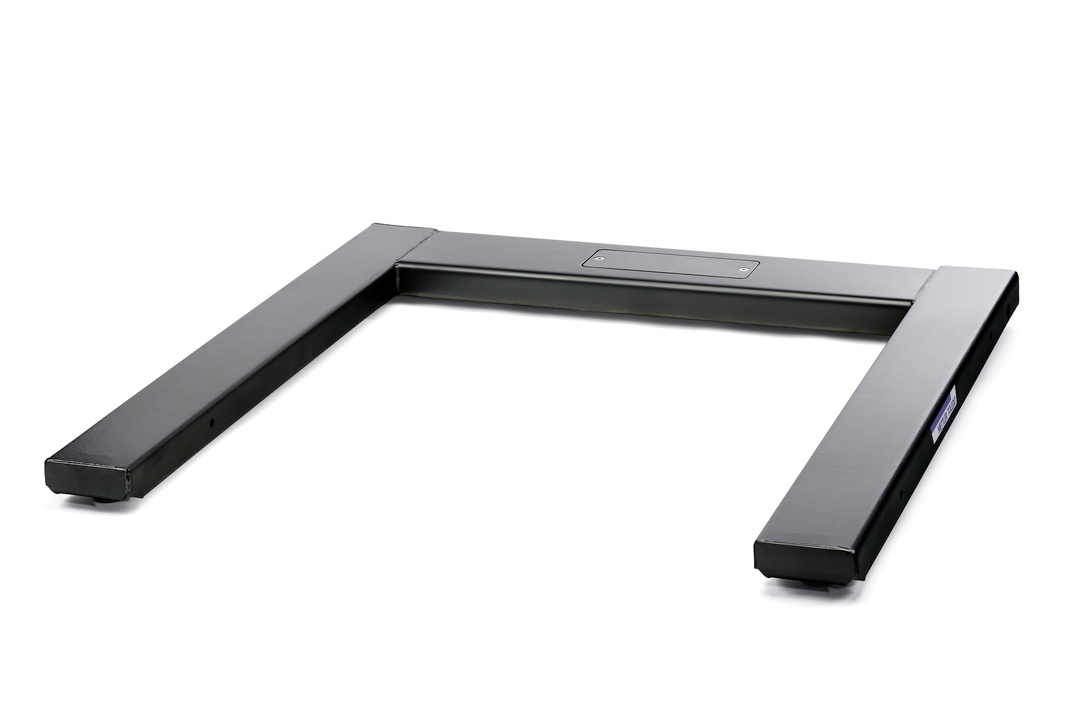

Floor Scale PTA464 S MS 5K 48X60
Floor Scale PTA464 S MS 5K 48X60
Specifications
Material
Mild Steel (epoxy painted, smooth plate deck finish)
Protection Rating
IP69k (Dry)
Hazardous Approval
CSA;FM Class I, Div. 1;ATEX Cat. 2GD
Scale Interface
Analog
Floor Scale Type
All Floor Scales;Pallet, Pallet Truck Scales;Mobile Floor Scales
Environment
Dry (<IP65)
Hazardous Area
Non-hazardous area;Zone 1/21;Division 1
Legal for Trade
NTEP
Dimensions/Platform Size
>60";>1,501 mm
Performance Optimization
Rocker-Foot: For improved weighing consistency;Reliable Weighing Technology: Robust stainless hermetic seal load cell
Versatility
U-Shape Pallet: For demanding weighing applications in dry environments;High Flexibility: Easy to move
Legal for Trade Class NTEP
Class III
Platform Type
Pallet scale
EasyPrint Name
PTA464SMS5K48X60
Hygienic Design
No
Maximum Capacity
5,000 lb
Maximum Capacity
2,250 kg
Readability
0.5 lb
Readability
500 g
Readability (Certified)
1 lb
Readability (Certified)
1,000 g
Repeatability
0.4 lb
Repeatability
200 g
Platform Size
60 in
Platform Size
1,524 mm
Platform Size
48 in
Platform Size
1,219 mm
Dimensions
60 in
Dimensions
1,524 mm
Dimensions
48 in
Dimensions
1,219 mm
Cable {Length}
25 ft
Repeatability, typical
200 g
Repeatability, (typical)
0.4 lb
Repeatability (sd)
0.4 lb
Repeatability (sd)
200 g
GWP Weight 1 Value
200 kg
GWP Weight 2 Value
100 kg
