Industrial Scales & Platforms

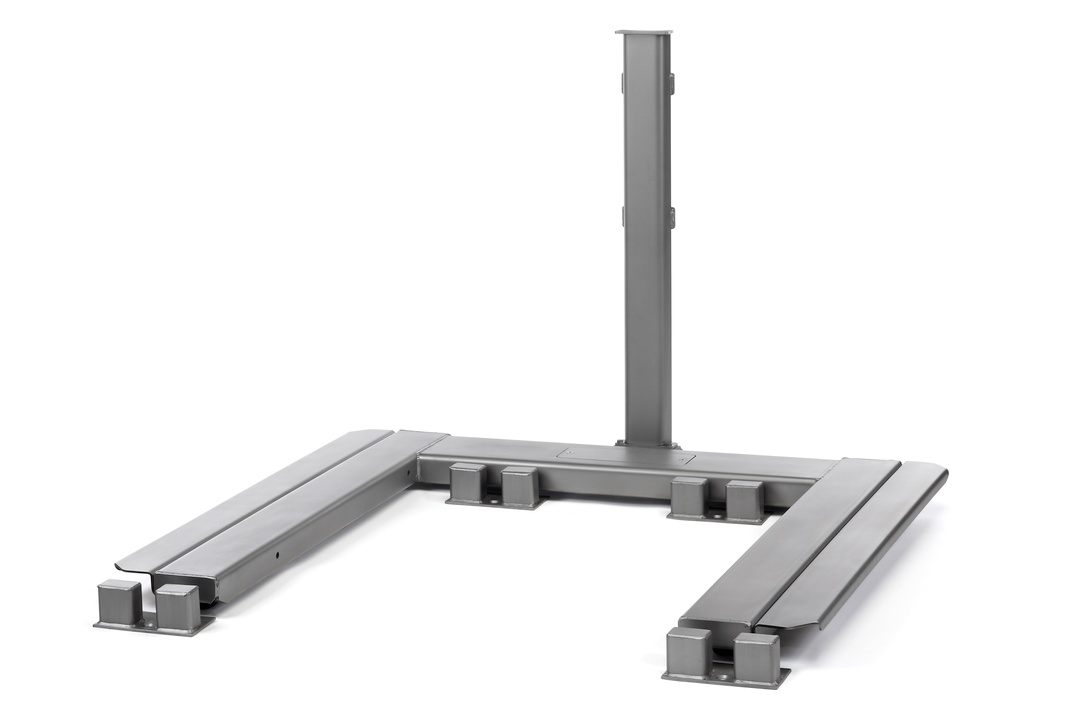

Floor Scale PTA469 S SS 2.5K 48X48
Floor Scale PTA469 S SS 2.5K 48X48
Specifications
Material
Stainless 304 Glass Bead Blasted Smooth
Protection Rating
IP69k
Hazardous Approval
CSA;FM Class I, Div. 1;ATEX Cat. 2GD
Scale Interface
Analog
Floor Scale Type
All Floor Scales;Pallet, Pallet Truck Scales;Mobile Floor Scales
Environment
Wet & Harsh Wet (>/=IP66)
Hazardous Area
Non-hazardous area;Zone 1/21;Division 1
Legal for Trade
NTEP
Dimensions/Platform Size
from 41" to 59.9";from 1,001 to 1,500 mm
Performance Optimization
Rocker-Foot: For improved weighing consistency;Reliable Weighing Technology: Robust stainless hermetic seal load cell
Versatility
U-Shape Pallet: For demanding weighing applications in wet environments;High Flexibility: Easy to move
Legal for Trade Class NTEP
Class III
Platform Type
Pallet scale
EasyPrint Name
PTA469SSS2.5K48X48
Hygienic Design
No
Maximum Capacity
2,500 lb
Maximum Capacity
1,100 kg
Readability
0.2 lb
Readability
200 g
Readability (Certified)
0.5 lb
Readability (Certified)
500 g
Repeatability
0.2 lb
Repeatability
100 g
Platform Size
48 in
Platform Size
1,219 mm
Platform Size
48 in
Platform Size
1,219 mm
Dimensions
48 in
Dimensions
1,219 mm
Dimensions
48 in
Dimensions
1,219 mm
Cable {Length}
25 ft
Repeatability, typical
100 g
Repeatability, (typical)
0.2 lb
Repeatability (sd)
0.2 lb
Repeatability (sd)
100 g
GWP Weight 1 Value
200 kg
GWP Weight 2 Value
50 kg
