Density & Refractometry

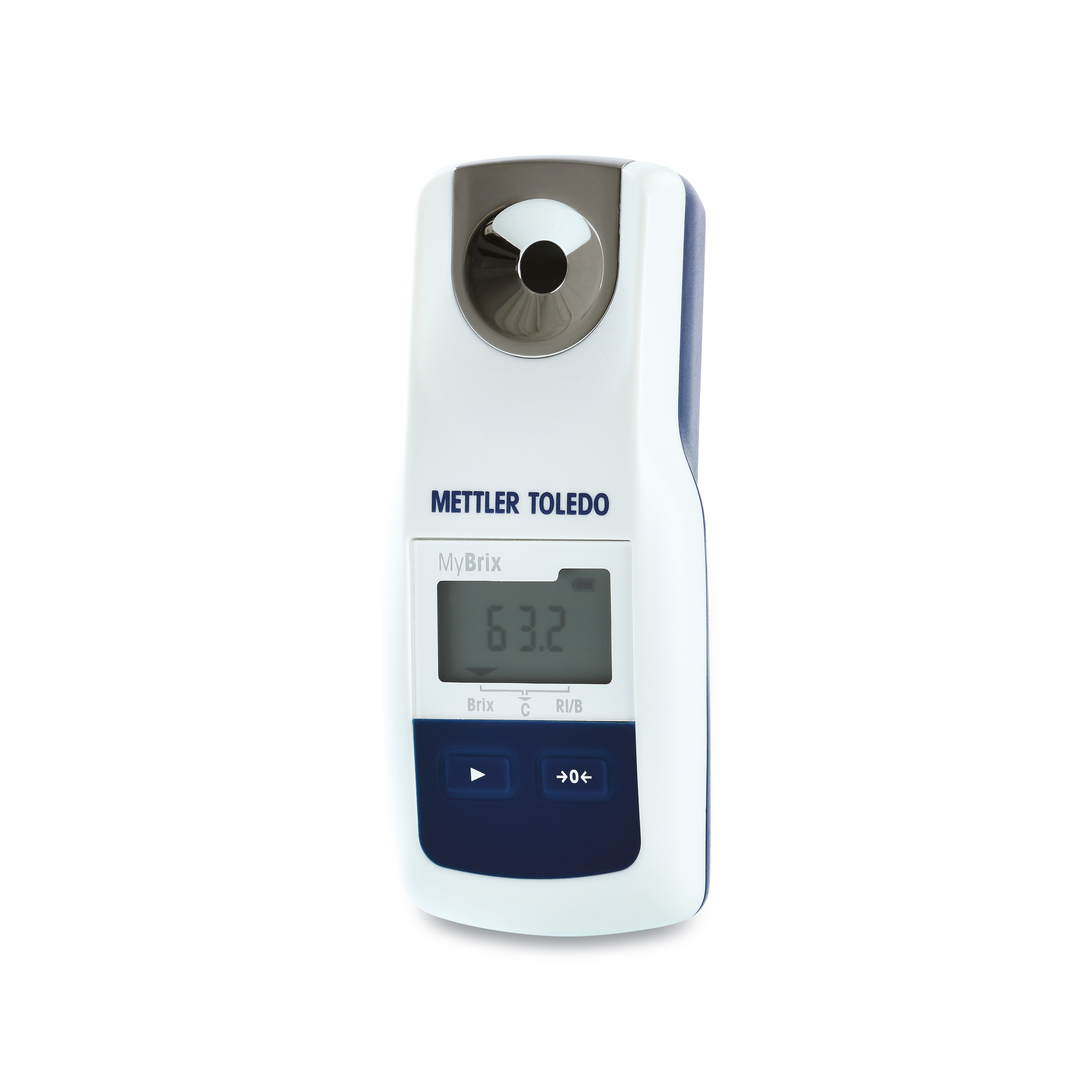

Handheld Refractometer MyBrix
With a full Brix range and 10 integrated sugar-related scales, the MyBrix offers fast measurements of almost any food and beverage sample. A compact, robust and weatherproof design makes this portable device ideal for field and on-site measurements.
Specifications
Measurement range nD
1.33 - 1.53
Measurement range Brix
0 - 95 % w/w
Measurement duration
2 s
Measurement Scales
Refractive Index, Brix, Brix compensated 20 °C, HFCS 42 / 55 / 90, °Baumé, KMW, Oechsle German / Swiss, °Plato, Wort
Display / User interface
1.8" digital LCD
PC Software
No
Printout
No
Temperature compensation range
5 – 60 °C
Battery type
3V, 2 x AAA (Alkaline batteries)
Accuracy Brix
0.2 % w/w
Built-in Measurement Scales
Refractive Index;Brix/Sugar tables
Funnel for Easy Sampling
No
LIMS connectivity
No
Measuring cell materials
Glass and stainless steel
Product Type
Portable refractometer
Battery Life
10,000 readings
IP Rating
IP65
Accuracy nD (±)
0.0003
Minimum Sample Volume
0.3 mL
Dimensions
54 mm
Dimensions
30 mm
Dimensions
115 mm
Weight
115 g
User Management
No
INQUIRY
Get a tailored quote for the Handheld Refractometer MyBrix.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
