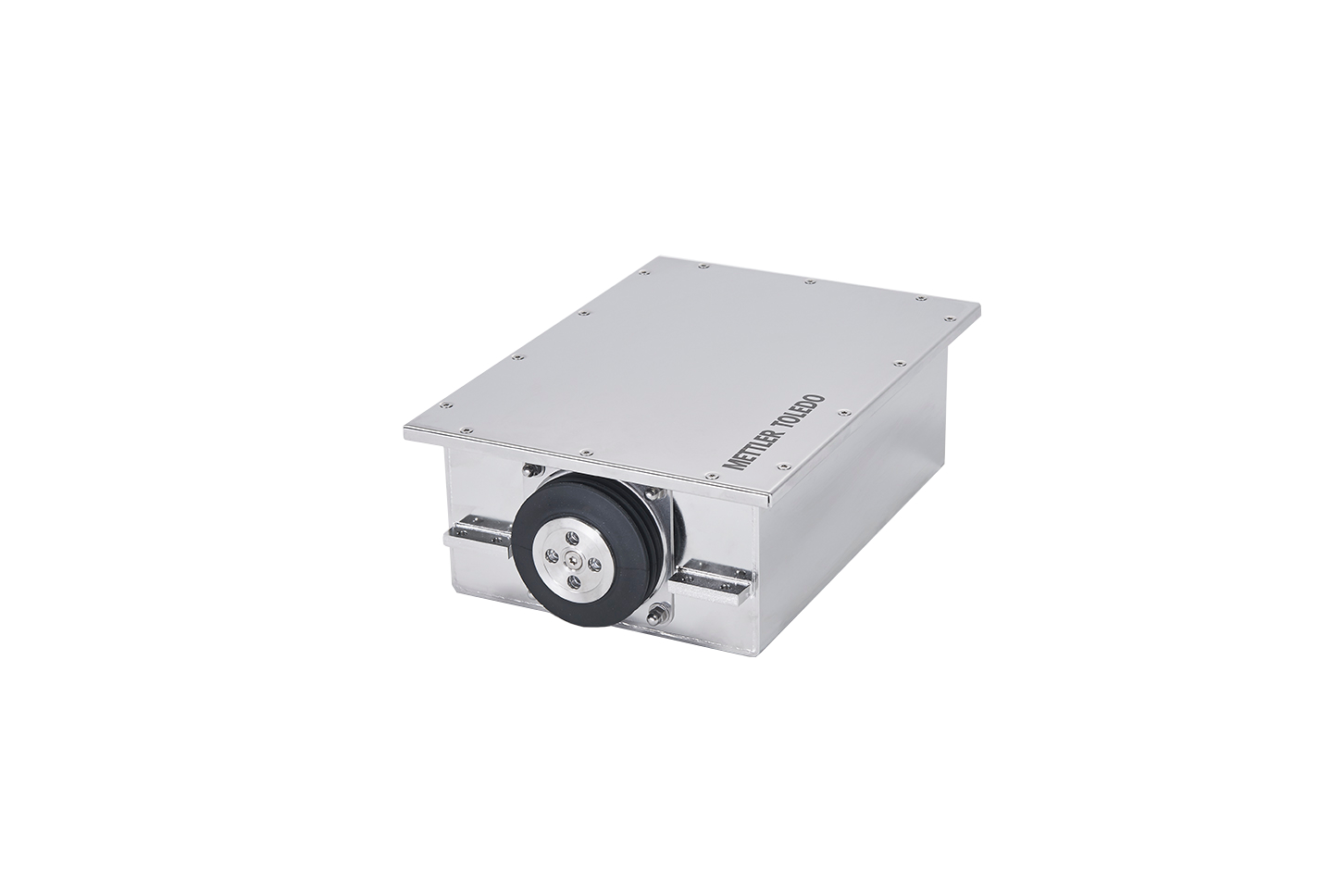

High Precision Weigh Module SLF660
High Precision Weigh Module SLF660
Specifications
Protection Rating
IP66;IP68
Interfaces
RS422;RS232
Power Supply
10 to 30 V DC
Maximum Capacity
64.2 kg
Dimensions
261 mm
Dimensions
182.5 mm
Dimensions
78 mm
Readability
0.1 g
Internal Adjustment
Yes
Internal Electronics
Yes
Legal for Trade
No
Washdown
No
Repeatability (sd) @ nominal load
0.1 g
Maximum Preload
10.8 kg
Interface update rate (max)
92 Hz
Product Line
SLF6
Adjustment
Internal
Repeatability, typical
0.1 g
Alpha (Fine range)
0.21602469 g
Beta (Fine range)
0 g
INQUIRY
Get a tailored quote for the High Precision Weigh Module SLF660.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
