Industrial Scales & Platforms

ICS226-QA6F-EU

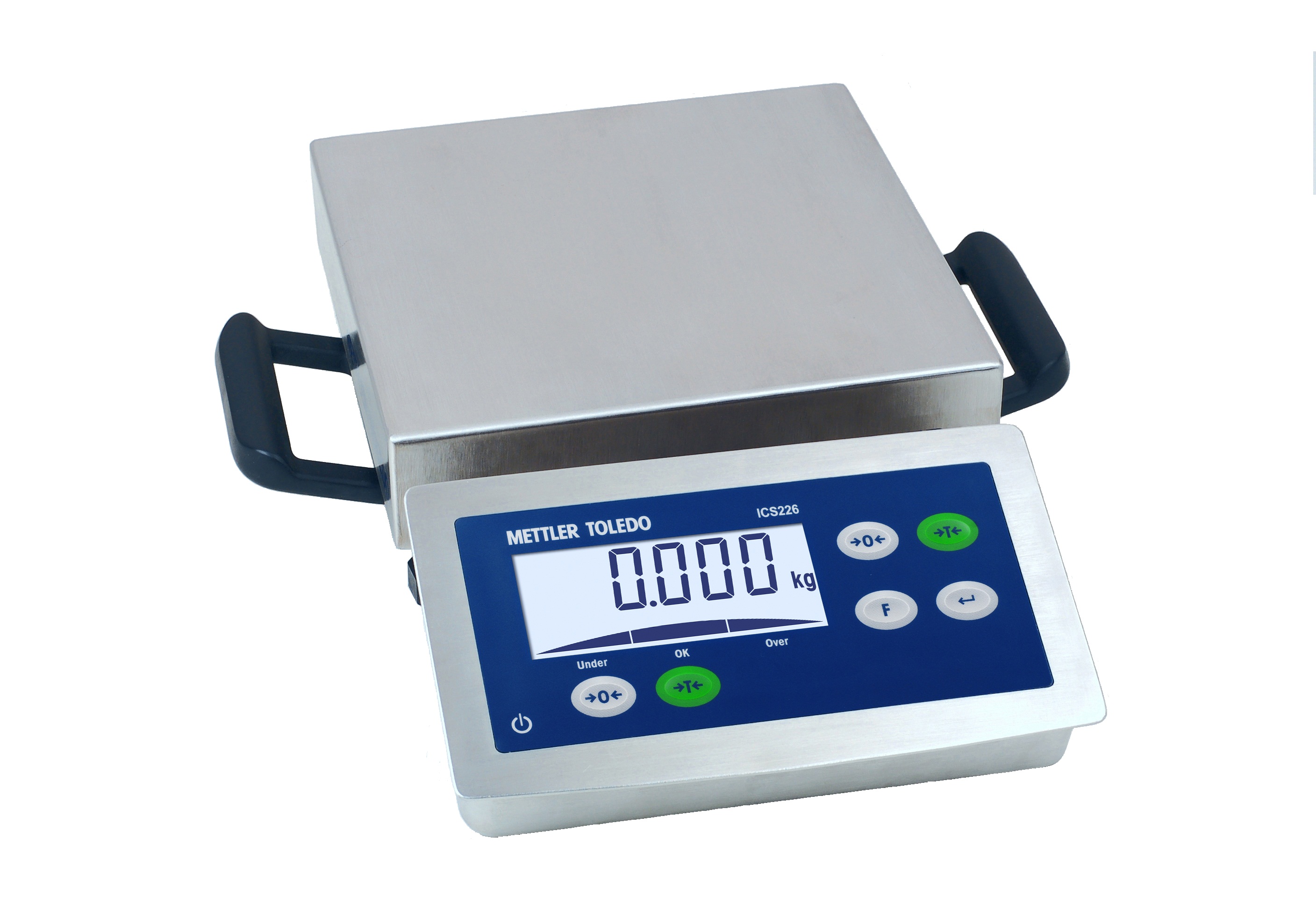

Name: ICS226-QA6F-EU
Brand: METTLER TOLEDO

ICS226-QA6F-EU

CategoryIndustrial Scales & Platforms

IndustryFood & Feed, Petro Chemical, Plastic

ReferenceICS226-QA6F-EU

Request a Quote →

Specifications

Material

Stainless Steel

Protection Rating

IP65 Platform;IP67 terminal

Hazardous Approval

Display

7 segment LCD with backlit

Housing

Stainless Steel

Interfaces

RS232

Power Supply

100…240VAC, 50/60 Hz

Application Software

Dynamic weighing;Counting;Simple weighing;Over Under Checkweighing

Applications

Simple Weighing;Dynamic weighing;Counting;Over Under Checkweighing

Data Interface

Serial

Dimensions/Platform Size

</=400 mm

Environment

Dusty & Light Wet (IP65)

Hazardous Area

Non-hazardous area

Scale Interface

Analog

Voltage

AC Version

Hygienic Design

Performance Optimization

For Wet Environments: Robust stainless steel load cell;Reliable Weighing Technology: Robust aluminum strain gauge load cell

Data Management

Simple Printing: Easy printing of weighing data;Convenient Printing: Easy creation of print & label templates

Versatility

Compact Counting Scale: For versatile weighing tasks in dry environment;Compact Scale: For simple weighing tasks in light wet environment;Mobile Operation: Built-In Battery;Mobile Operation: Battery for flexible operation

Platform Type

Counting Scales

EasyPrint Name

ICS226-QA6F-EU

Maximum Capacity

6 kg

Readability

1 g

Repeatability (sd)

0.2 g;0.3 g

Platform Size

228 mm

Platform Size

228 mm

Platform Size

78 mm

Weighing Pan Dimensions

50 mm

Weighing Pan Dimensions

228 mm

Dimensions

9 in

Dimensions

230 mm

Dimensions

12 in

Dimensions

306 mm

Repeatability

1 g

Repeatability, typical

0.2 g;0.3 g

Weighing Pan Dimensions

228 mm

Error of Indication at full load (typical)

0.2 g;0.8 g

Error of Indication at half load (typical)

0.3 g;0.6 g

Hysteresis (typical)

0.1 g;0.3 g

Key features

Eccentric Load Deviation at 1/3 of Full Load (typical) {Metric}: 0.5 g;0.7 g

INQUIRY

Get a tailored quote for the ICS226-QA6F-EU.

Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
