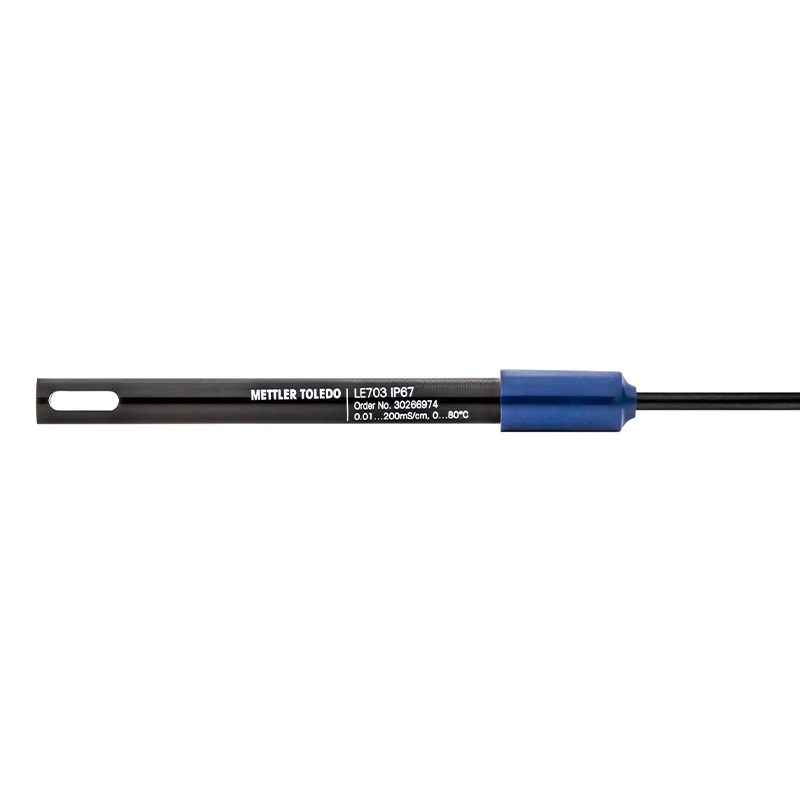

LE Cond Electrode LE703-IP67
Robust conductivity probe for medium to high conductivities with integrated temperature sensor (10 μS/cm–200 mS/cm).
Specifications
Measuring range
0.01 – 200 mS/cm
Connector
LTW (IP67)
Cell type
4 graphite poles
Cell Constant
0.55 cm-1
Shaft Material
Epoxy
Sensor Type
4 graphite poles
Parameter
Conductivity
Intelligent Sensor Management (ISM®)
No
Temperature probe
NTC 30 kΩ
For Portable Meter
Yes
Low Maintenance
Yes
Signal type
Analog
Sample
General Purpose
Cable and connectors
2.0 m LTW, IP67
Shaft length
120 mm
Shaft Diameter
12 mm
Cable {Length}
2 m
Temperature Range
0 °C – 80 °C
Base Unit Temperature Range
0 °C – 80 °C
Connector on Sensor
Fixed 2 m cable
Connector to Meter
IP67 LTW
Cable Included
Yes
Long Cable
No
Sample Conductivity
>100 uS/cm
Sensor Characteristics
Temperature Probe;Standard sensor;Analogue;IP67;Mechanically robust
Presence of Harsh Chemicals
No
Recommended Meters
FiveGo
Recommended Meter Models
F3
Unique Sensor Purpose
High Conductivity
