pH & Electrochemistry

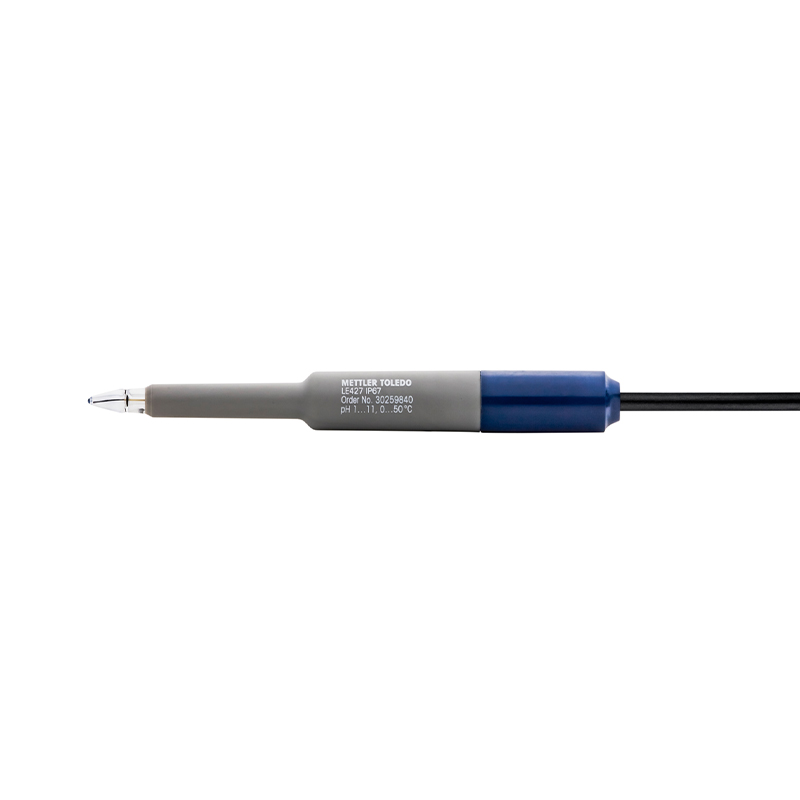

LE pH Electrode LE427-IP67
The spear tip design makes pH electrode ideal for solid samples such as meat, fruit, cheese, soil and many more; low-maintenance.
Specifications
Measuring range
pH 1 – 11
Connector
BNC (IP67)
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
Ag/AgCl
Reference electrolyte
Gel
Membrane glass
LoT
Membrane resistance (25°C)
< 250 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
For Portable Meter
Yes
Low Maintenance
Yes
Signal type
Analog
Sample
Semi-solid samples
Cable and connectors
2.0 m BNC, IP67
Shaft length
17 mm
Shaft Diameter
6 mm
Cable {Length}
2 m
Temperature Range
0 °C – 50 °C
Connector on Sensor
Fixed 2 m cable
Connector to Meter
BNC
Cable Included
Yes
Sample Consistency
Solid / semi-solid (measure inside sample / puncture)
Typical Samples
Fruits& Vegetables;Cheese;Meat & Fish
Sensor Characteristics
IP67
Recommended Meters
FiveGo
Recommended Meter Models
F2
Unique Sensor Purpose
Solids/Semi-solids
INQUIRY
Get a tailored quote for the LE pH Electrode LE427-IP67.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
