Load Cells & Weigh Modules

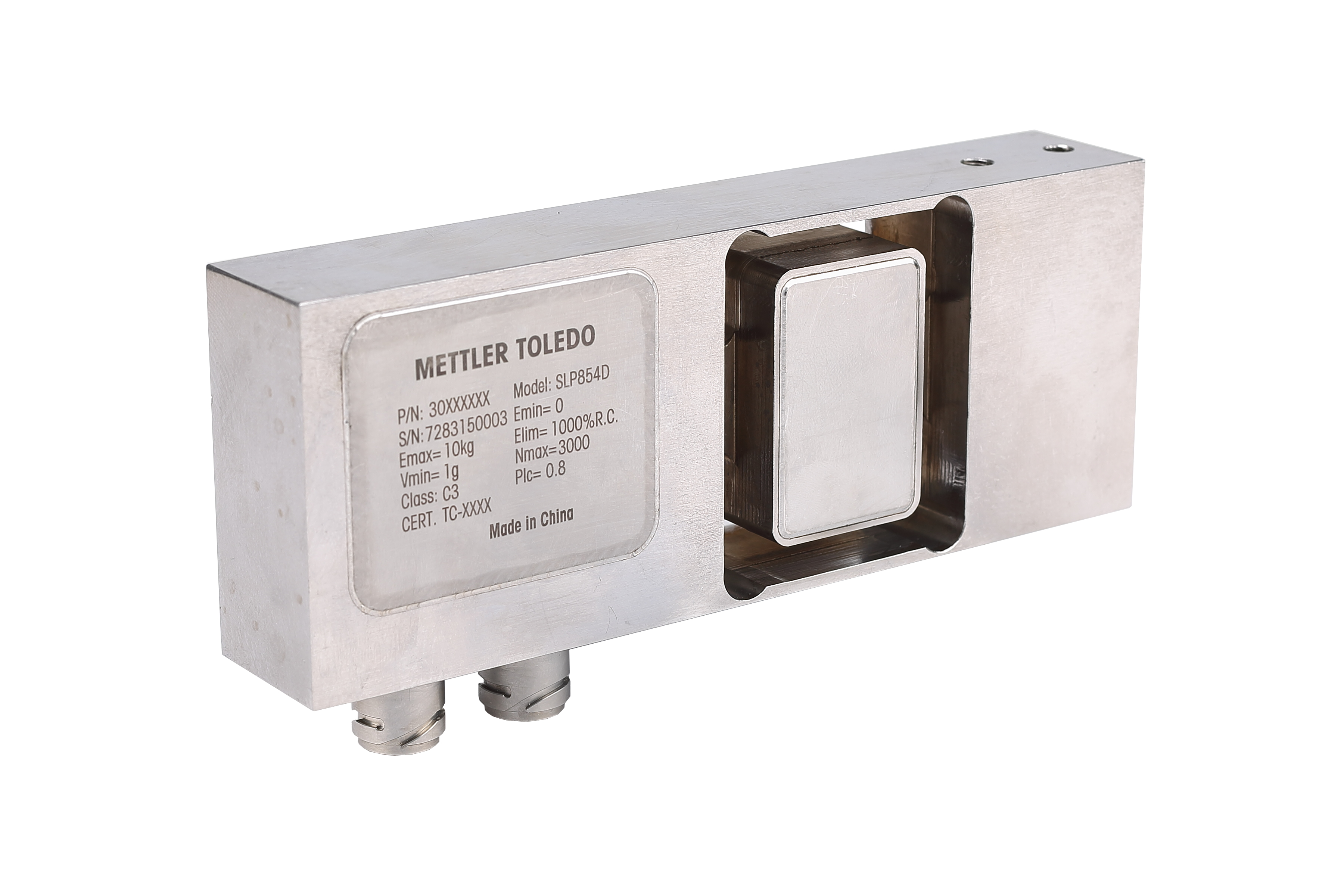

Load Cell SLP854D-20kg C3 Fill/EI-B
SLP85xD is a digital, single point, strain gage load cell, which is specifically designed to address the needs of dynamic weighing applications.
Specifications
Power Supply
10 to 30 V DC
Integrated Application
Filling
Interfaces
RS232;EtherNet/IP
Material
17 - 4 SS
Protection Rating
IP68/69k
Cable
PU
Maximum Capacity
20 kg
Digital Inputs
3
Digital Outputs
5
Cable {Length}
6 m
Repeatability, typical
2.45 g
Readability
2 g
Platform Size
400 mm
Platform Size
400 mm
Interface update rate (max)
1,200 Hz
INQUIRY
Get a tailored quote for the Load Cell SLP854D-20kg C3 Fill/EI-B.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
