Melting & Dropping Point

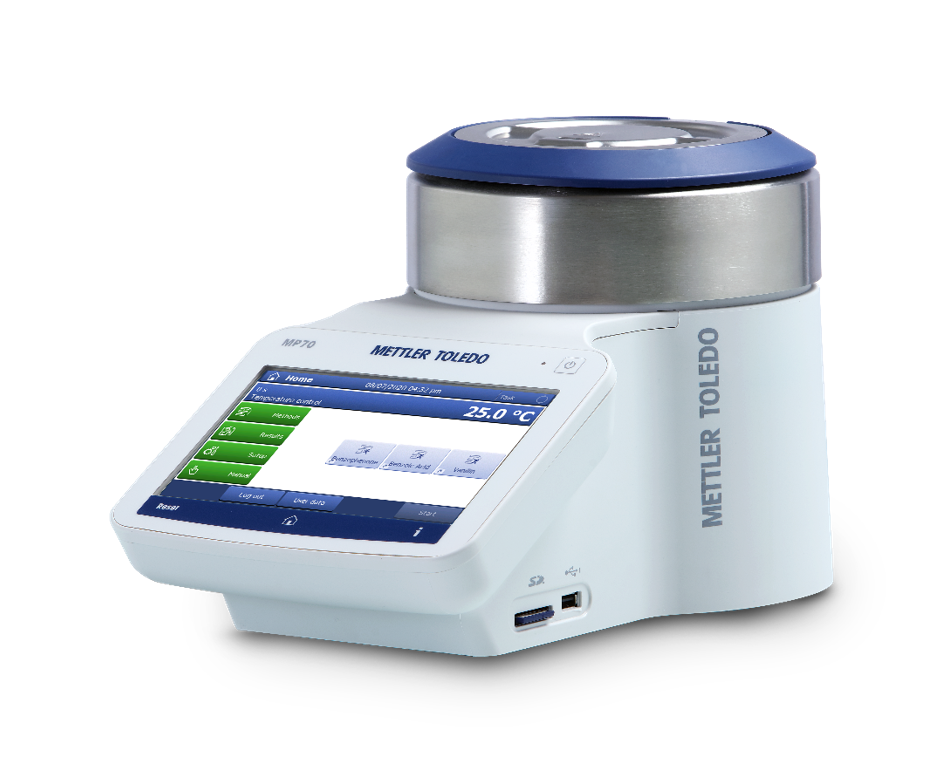

Melting Point System MP70
The MP70 is the ideal choice for melting point and melting range determinations, offering simultaneous determination of up to 4 melting point/melting range samples up to a maximum temperature of 350 °C.
Specifications
Temp. Range {text}
RT – 350 °C
Number of One Clicks™
12 Per User
Application Type
Melting Point
Data Export
to SD Card, USB Stick or PC
Number of Capillaries/Cups
4 Melting Point Capillaries
PDF Reports
Yes
Video
color, 300 minutes
Max. number of methods
20
Languages
English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean
Display / User interface
7" color display with touchscreen
PC Software
LabX Express and Server
Dimensions (Width x Height x Depth)
18 x 35 x 19 cm
Standard compliance
www.mt.com/mpdp-norms
Min. Cooling Time (Tmax to 50 °C)
5.5 min
Min. Heating Time (50 °C to Tmax)
4
Stored Methods
20
Stored Results
50
Substances in database
6
Weight
4 kg
Heating Rate (/min)
0.1 °C – 20 °C
Min. Number of Melting Point Capillaries
4 Melting Point Capillaries
PC Software (optional)
Yes
LIMS connectivity
Yes
Compliance / Data Security
Audit Trail (requires LabX software);21 CFR part 11 / EU Annex 11 (requires LabX software)
User Management
Password Protection;Protection of Settings;Multiple Users
