Melting & Dropping Point

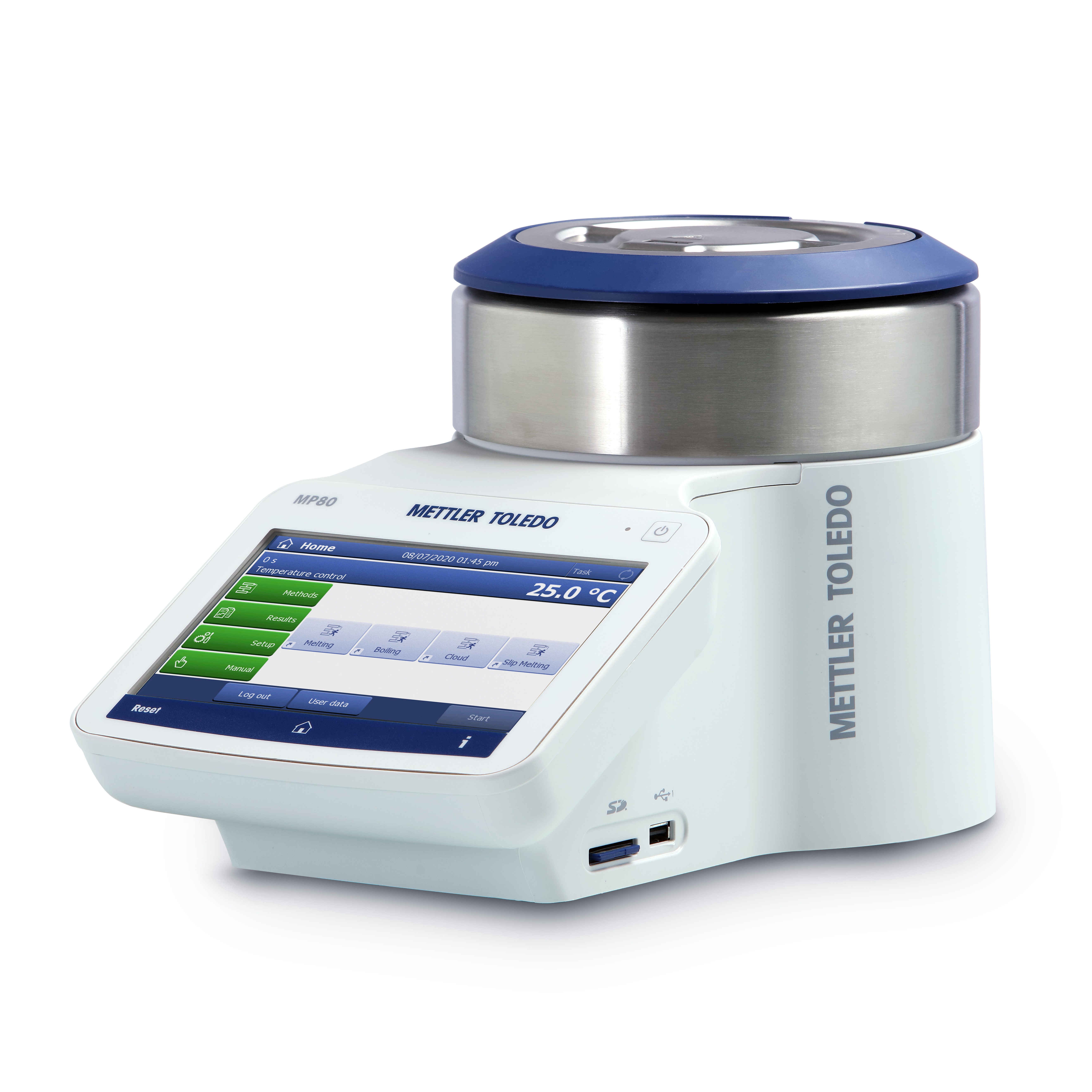

Melting Point System MP80
Optimized for diverse tasks, the MP80 offers One Click™ melting, boiling, cloud and slip melting point determination up to a maximum temperature of 350 °C.
Specifications
Temp. Range {text}
RT – 350 °C
Number of One Clicks™
12 Per User
Application Type
Boiling Point;Cloud Point;Slip Melting Point;Melting Point
Data Export
to SD Card, USB Stick or PC
Number of Capillaries/Cups
3 Melting Point Capillaries;2 Cloud Point Capillaries;2 Boiling Point Capillaries;2 Slip Melting Point Capillaries
PDF Reports
Yes
Video
color, 300 minutes
Languages
English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean
Display / User interface
7" color display with touchscreen
PC Software
LabX Express and Server
Dimensions (Width x Height x Depth)
18 x 35 x 19 cm
Standard compliance
www.mt.com/mpdp-norms
Min. Cooling Time (Tmax to 50 °C)
5.5 min
Min. Heating Time (50 °C to Tmax)
4
Stored Methods
20
Stored Results
50
Substances in database
12
Weight
4 kg
Heating Rate (/min)
0.1 °C – 20 °C
Min. Number of Melting Point Capillaries
3 Melting Point Capillaries
PC Software (optional)
Yes
LIMS connectivity
Yes
Compliance / Data Security
Audit Trail (requires LabX software);21 CFR part 11 / EU Annex 11 (requires LabX software)
User Management
Password Protection;Protection of Settings;Multiple Users
INQUIRY
Get a tailored quote for the Melting Point System MP80.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Pharma will respond within one business day.
