Melting & Dropping Point

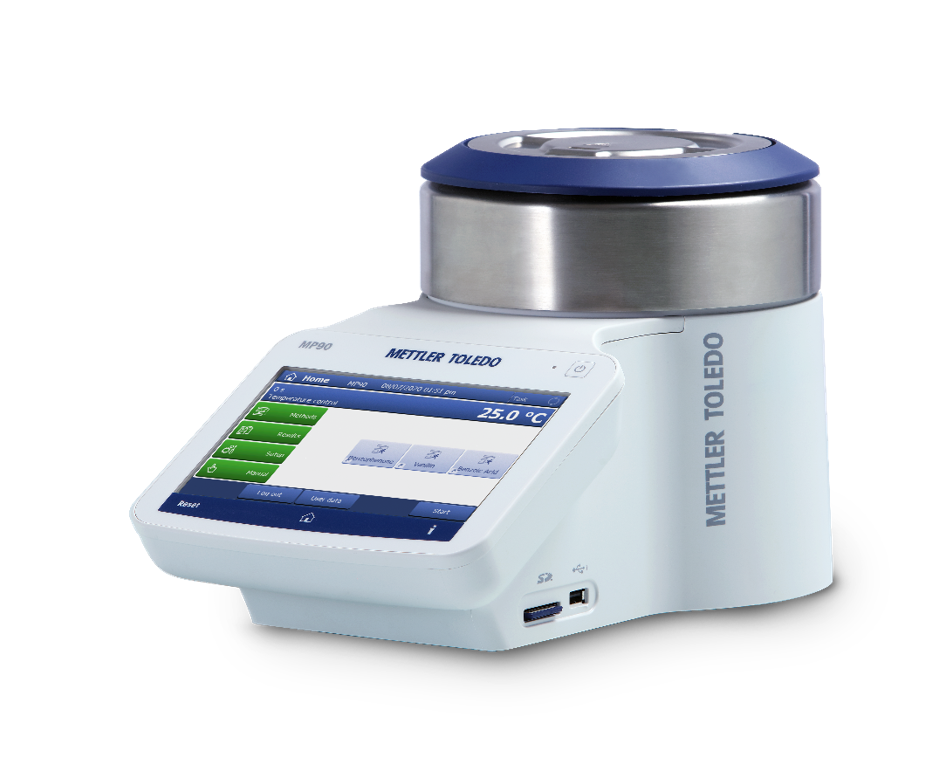

Melting Point System MP90
Optimized for highest throughput, the MP90 offers simultaneous determination of up to 6 melting point/melting range samples up to a maximum temperature of 400 °C.
Specifications
Temp. Range {text}
RT – 400 °C
Number of One Clicks™
12 Per User
Application Type
Melting Point
Data Export
to SD Card, USB Stick or PC
PDF Reports
Yes
Video
color, 300 minutes
Display / User interface
7" color display with touchscreen
Languages
English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean
PC Software
LabX Express and Server
Dimensions (Width x Height x Depth)
18 x 35 x 19 cm
Standard compliance
www.mt.com/mpdp-norms
Min. Cooling Time (Tmax to 50 °C)
6 min
Min. Heating Time (50 °C to Tmax)
5 min
Stored Methods
60
Stored Results
100
Substances in database
100
Weight
4 kg
Heating Rate (/min)
0.1 °C – 20 °C
Min. Number of Melting Point Capillaries
6 Melting Point Capillaries
PC Software (optional)
Yes
LIMS connectivity
Yes
Compliance / Data Security
Audit Trail (requires LabX software);21 CFR part 11 / EU Annex 11 (requires LabX software)
User Management
Password Protection;Protection of Settings;Multiple Users
