pH & Electrochemistry

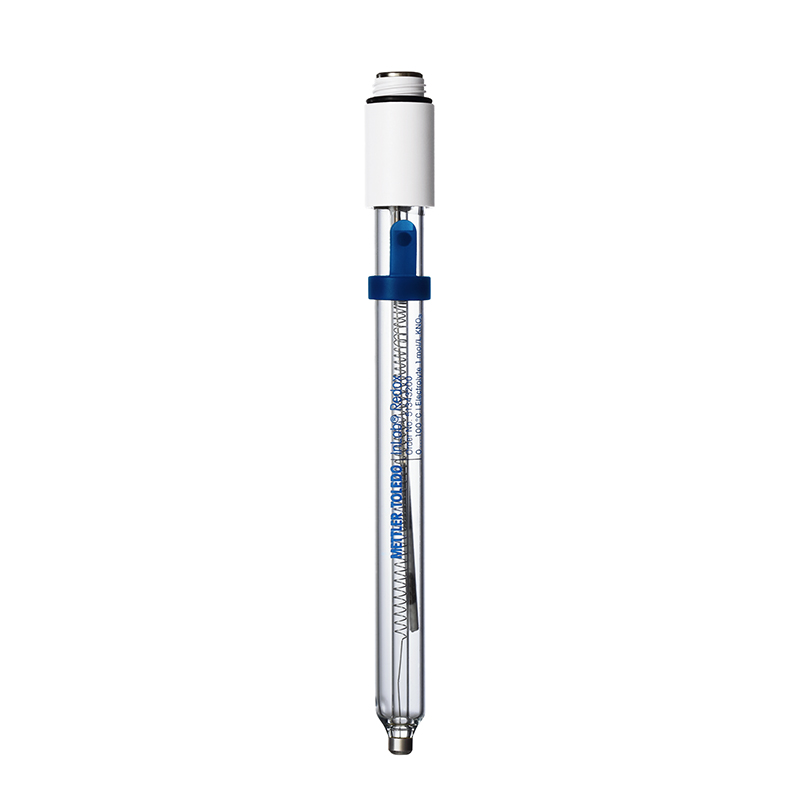

ORP electrode InLab Redox
A combination ORP electrode with platinum ring indicator and S7 screw head.
Specifications
Metal
Platinum ring
Connector
S7
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
Redox
Reference System
ARGENTHAL™
Reference electrolyte
3 mol/L KCl
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Signal type
Analog
Sample
General Purpose
Reference electrolyte Order no.
51343180
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 100 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample reacts with Platinum
No
Cable Included
No
Sensor Characteristics
Chemically robust;Premium Sensor
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go;NineFocus
Recommended Meter Models
SG68;NF2300;SG23;SG78;SD23;S8;SG98;SD20;NF2000;NF2340;S2
Unique Sensor Purpose
Generalist Best Choice
INQUIRY
Get a tailored quote for the ORP electrode InLab Redox.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
