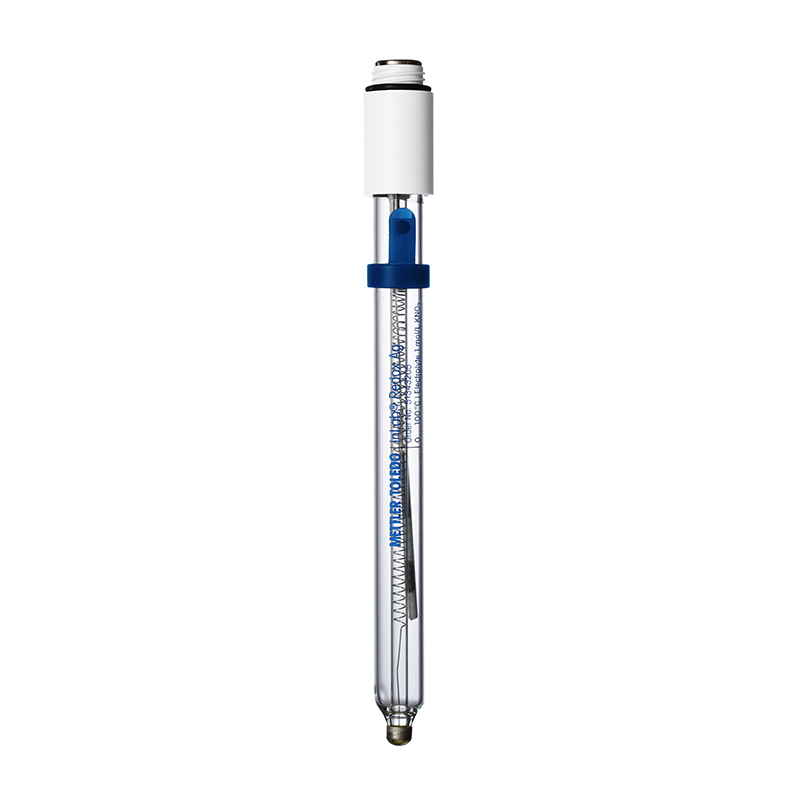

ORP electrode InLab Redox Ag
A combination ORP electrode with platinum ring indicator and S7 screw head.
Specifications
Metal
Silver ring
Connector
S7
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
Redox
Reference System
ARGENTHAL™
Reference electrolyte
1 mol/L KNO3
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Signal type
Analog
Sample
General Purpose
Reference electrolyte Order no.
51343180
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 100 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Cable Included
No
Sample reacts with Platinum
Yes
Sensor Characteristics
Chemically robust;Premium Sensor
Sample reactivity with Au and Ag
Does not react with Silver;Does not react with Gold nor Silver
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go;NineFocus
Recommended Meter Models
SG68;NF2300;SG23;SG78;SD23;S8;SG98;SD20;NF2000;NF2340;S2
Unique Sensor Purpose
Sample Reactivity with Platinum
