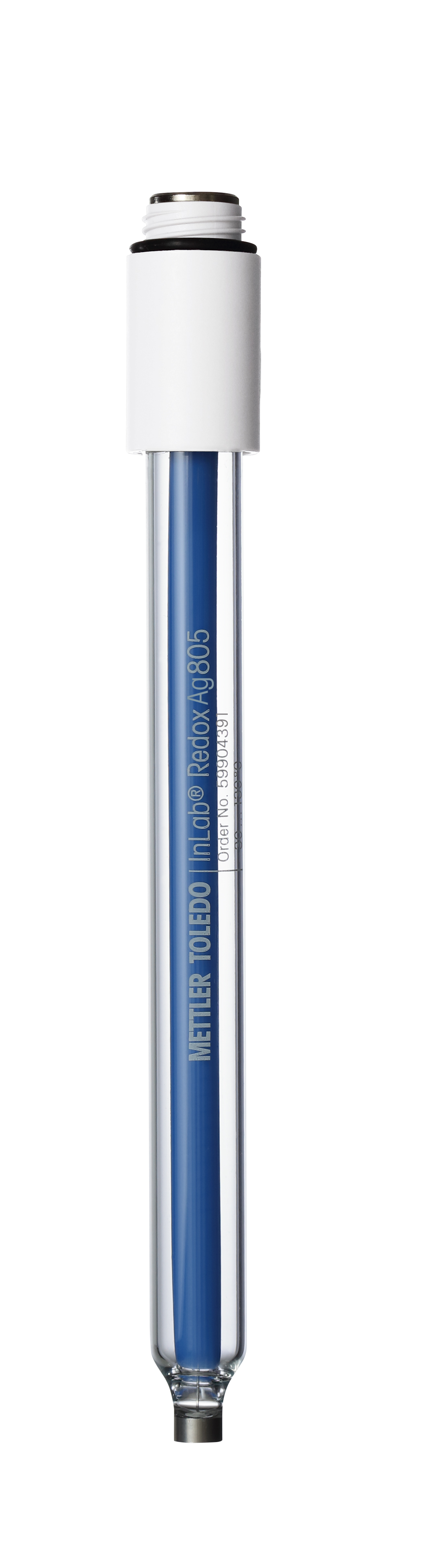

ORP electrode InLab Redox Ag805
A ORP half-cell with silver ring indicator and S7 screw head.
Specifications
Metal
Silver ring
Connector
S7
Type of junction
--
Shaft Material
Glass
Sensor Type
Half-cell
Parameter
Redox
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Signal type
Analog
Sample
General Purpose
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
-30 °C – 130 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Reference System
--
Reference electrolyte
--
Sample reacts with Platinum
Yes
Cable Included
No
Sensor Characteristics
Chemically robust;Premium Sensor;High temperature;Low temperature
Sample reactivity with Au and Ag
Does not react with Silver;Does not react with Gold nor Silver
INQUIRY
Get a tailored quote for the ORP electrode InLab Redox Ag805.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
