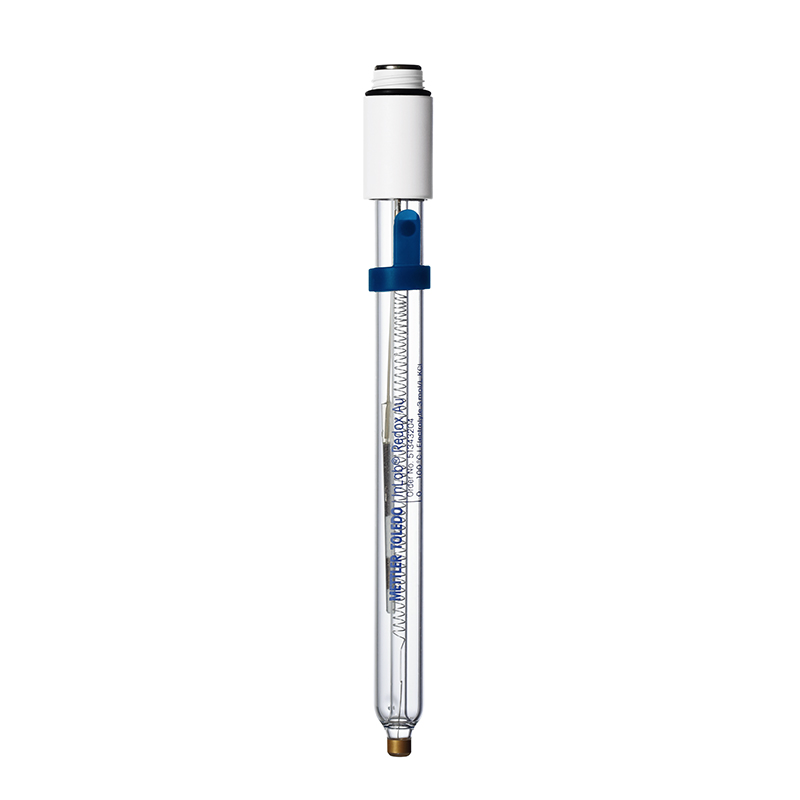

ORP electrode InLab Redox Au
A combination ORP electrode with gold ring indicator and S7 screw head.
Specifications
Metal
Gold Ring
Connector
S7
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
Redox
Reference System
ARGENTHAL™
Reference electrolyte
3 mol/L KCl
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Signal type
Analog
Sample
Highly oxidizing samples
Reference electrolyte Order no.
51343180
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 100 °C
Connector to Meter
Flexible (detachable cable)
Connector on Sensor
S7
Sample reacts with Platinum
Yes
Cable Included
No
Sample reactivity with Au and Ag
Does not react with Gold
Sensor Characteristics
Chemically robust;Premium Sensor
