pH & Electrochemistry

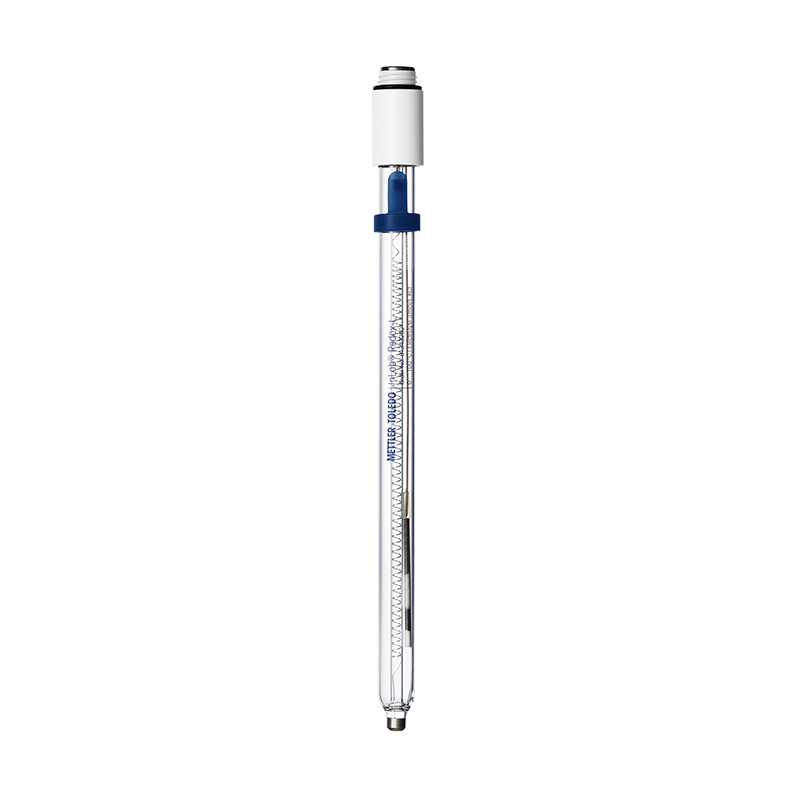

ORP electrode InLab Redox-L
A combination ORP electrode with platinum ring indicator, 170 mm shaft length and S7 screw head.
Specifications
Metal
Platinum ring
Connector
S7
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
Redox
Reference System
ARGENTHAL™
Reference electrolyte
3 mol/L KCl
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Signal type
Analog
Sample
Large samples
Reference electrolyte Order no.
51343180
Shaft length
170 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 100 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Cable Included
No
Sensor Characteristics
Chemically robust;For tall vessel;Premium Sensor;High temperature
Sample reacts with Platinum
No
