pH & Electrochemistry

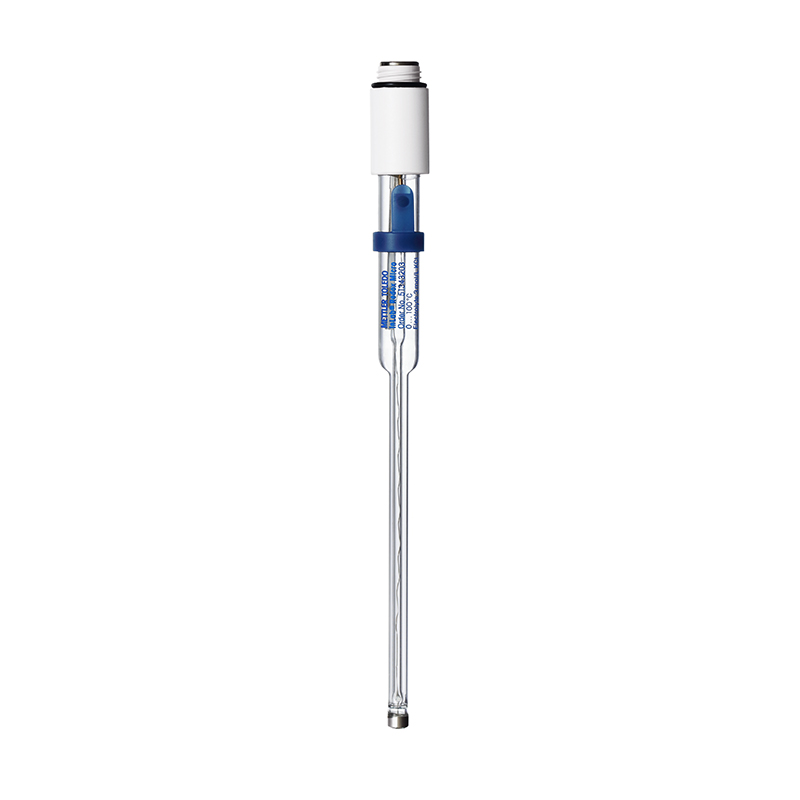

ORP electrode InLab Redox Micro
A micro combination ORP electrode with platinum ring indicator and S7 screw head.
Specifications
Metal
Platinum ring
Connector
S7
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
Redox
Reference System
ARGENTHAL™
Reference electrolyte
3 mol/L KCl
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Signal type
Analog
Sample
Small samples
Reference electrolyte Order no.
51343180
Shaft length
100 mm
Shaft Diameter
6 mm
Temperature Range
0 °C – 100 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Cable Included
No
Sample reacts with Platinum
No
Sensor Characteristics
Chemically robust;Premium Sensor;Small volume
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go;NineFocus
Recommended Meter Models
SG68;NF2300;SG23;SG78;SD23;S8;SG98;SD20;NF2000;NF2340;S2
Unique Sensor Purpose
Small Volumes (< 25 mL)
