pH & Electrochemistry

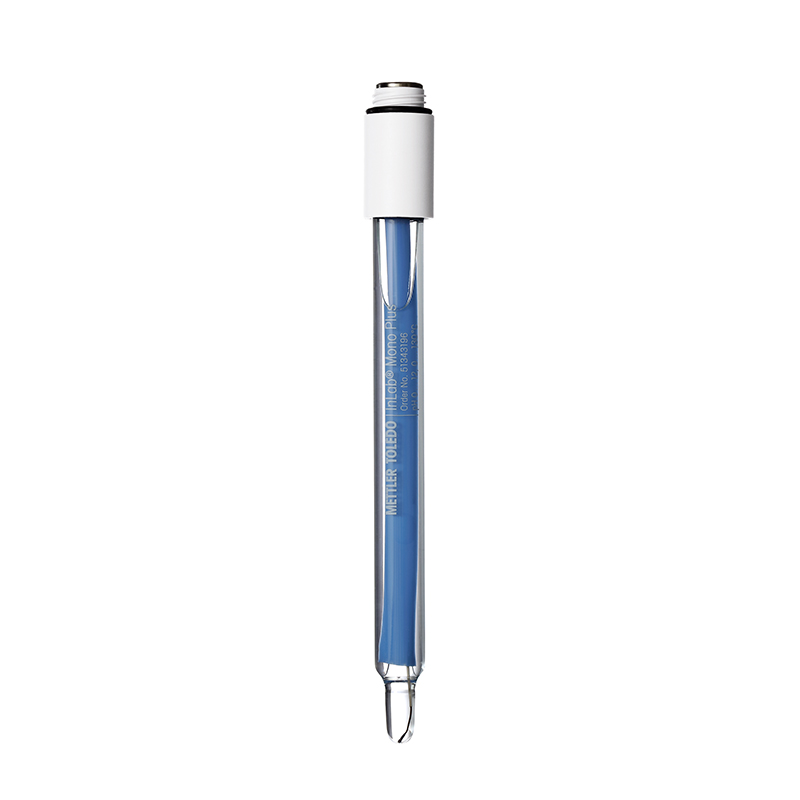

pH Half-Cell InLab® Mono Plus
A glass-body, pH electrode (half-cell) with S7 screw head.
Specifications
Measuring range
pH 0 – 12
Type of junction
--
Shaft Material
Glass
Sensor Type
Half-cell
Parameter
pH
Membrane glass
A41 (thick-walled glass)
Membrane resistance (25°C)
< 700 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
Yes
Signal type
Analog
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 130 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample Temperature
>100°C
Cable Included
No
Sample Consistency
Liquid;Sludge / slurry / suspension
Sample Composition
Aqueous
Typical Samples
Water;Beer, Suspended soil
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Chemically robust;High temperature
Sample Volume
>= 20 mL
INQUIRY
Get a tailored quote for the pH Half-Cell InLab® Mono Plus.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
