pH & Electrochemistry

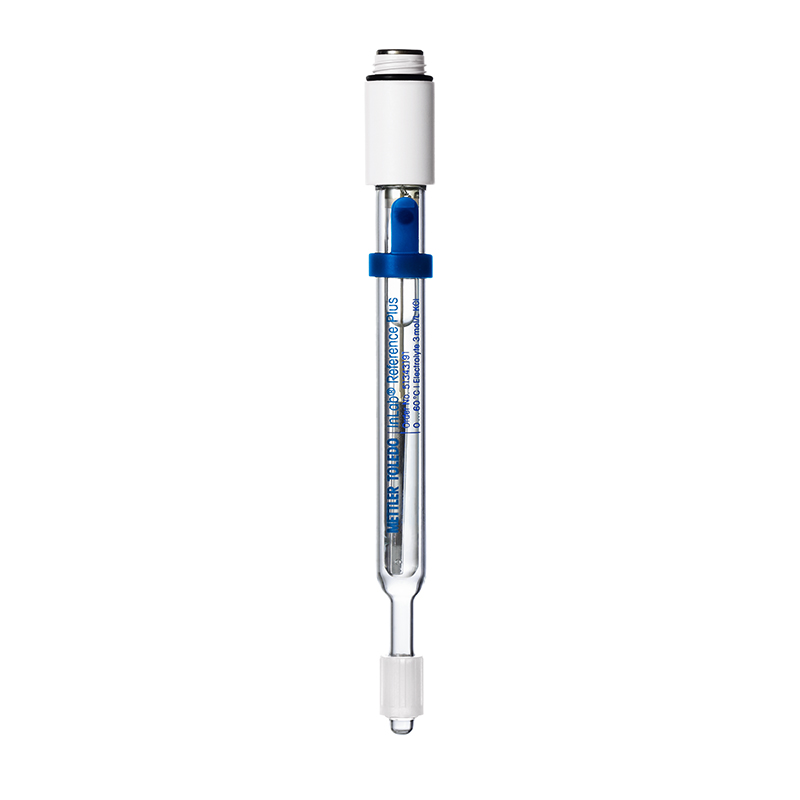

pH Half-Cell InLab® Reference Plus
A glass-body, reference electrode with a movable sleeve junction, bridge electrolyte and S7 screw head.
Specifications
Type of junction
Movable PTFE sleeve
Shaft Material
Glass
Sensor Type
Reference electrode
Parameter
Reference electrode
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
3 mol/L KCl
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
Yes
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 60 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Chemically robust
Sample Volume
>= 20 mL
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go;NineFocus
Recommended Meter Models
SG68;SG78;S8;SG98;SD50;NF5000
Unique Sensor Purpose
Needed together with DX Half-Cell
INQUIRY
Get a tailored quote for the pH Half-Cell InLab® Reference Plus.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
