pH & Electrochemistry

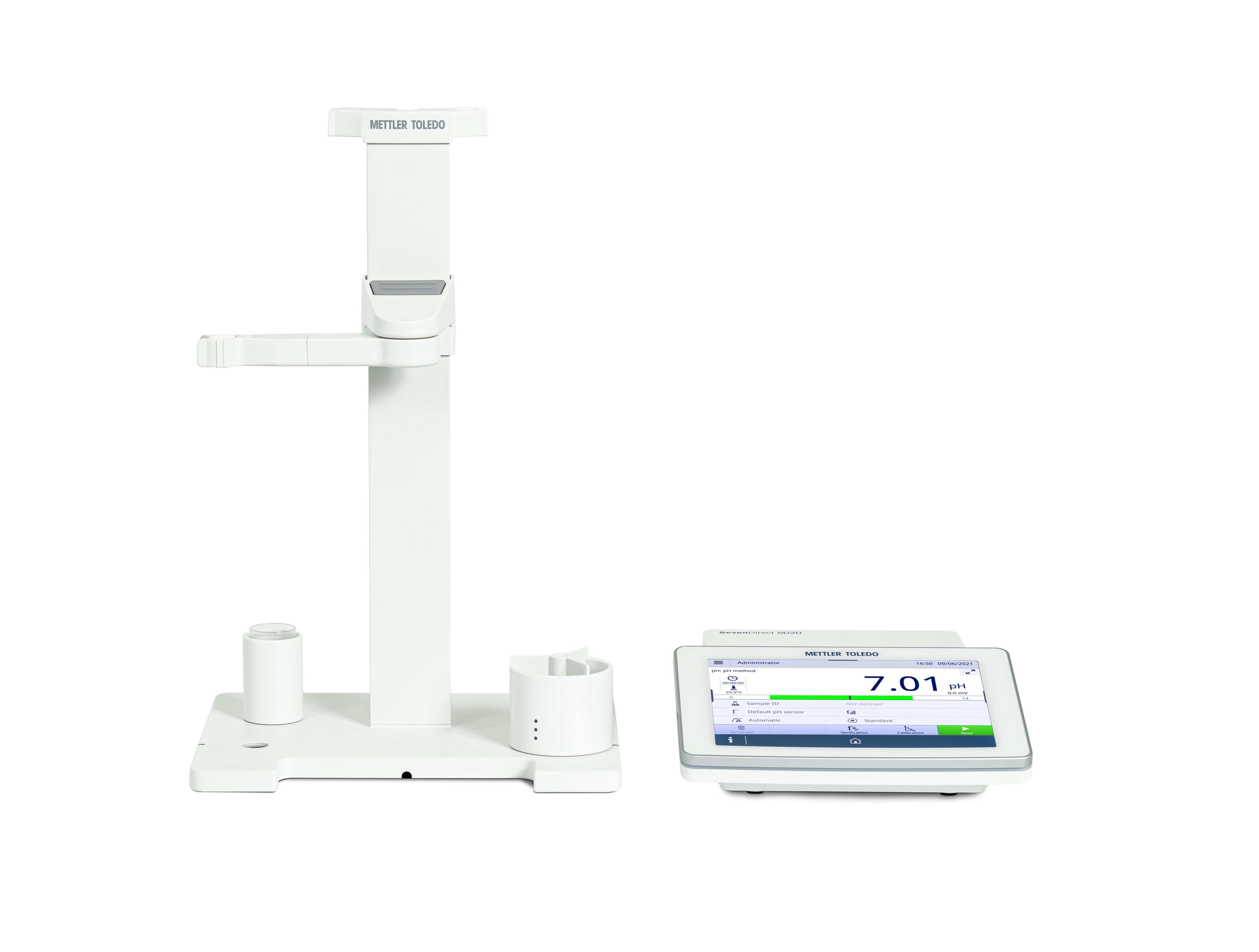

pH meter SevenDirect SD20
The SevenDirect SD20 is an accurate and flexible meter for the determination of pH and ORP. The instrument is delivered with an EasyPlace sensor arm.
Specifications
Parameter
pH;ORP
Channel
Single-channel
Version kit
Meter only
Temperature accuracy (±)
±0.1 °C between 0 °C and 100 °C
Ease of Use
Touch screen; Calibration Support; Guided Verification; Simple Methods; Multilingual Menu
Security and compliance
GLP;User management
Memory Size
2000 standard measurements
Data Transfer
PC;Printer;USB stick
Flexibilty and modularity
Stirrer;Barcode reader
Protection Rating
Watertight and dustproof (IP54)
Compatible with Intelligent sensor management (ISM)
Yes
Portable Meter
No
Meter Type
Benchtop Single-Channel
Sensor Included
None
mV measuring range {text}
-2000..2000 mV
Dimensions
195x205x65 mm
Display Type
7" Color TFT
Weight
850 g
Connectors
BNC; RCA / Cinch; USB A; USB B; Mini-DIN for stirrer;
pH resolution
0.1;0.01;0.001
pH accuracy (±)
0.002
mV resolution
1;0.1
mV accuracy (±)
0.1
Temperature resolution
0.1 °C
Temperature Range
-30 °C – 130 °C
Product Line
SevenDirect
INQUIRY
Get a tailored quote for the pH meter SevenDirect SD20.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
