pH & Electrochemistry

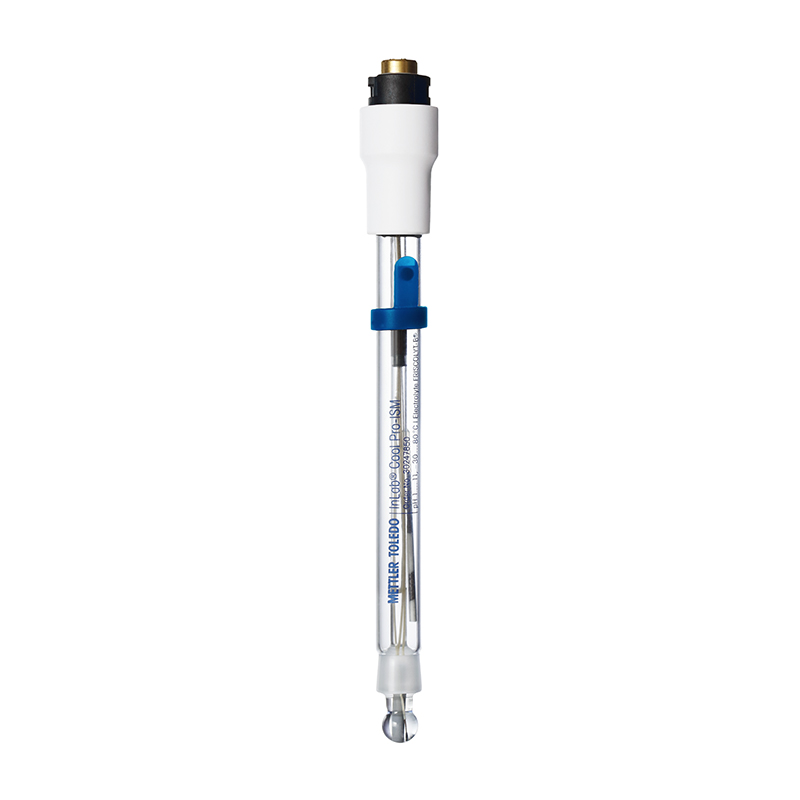

pH Sensor InLab® Cool Pro-ISM
A glass-body, combination pH electrode with integrated temperature sensor, MultiPinTM head and ISM. Designed for cold samples.
Specifications
Measuring range
pH 1 – 11
Type of junction
Immovable glass sleeve
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
FRISCOLYT-B®
Membrane glass
LoT
Membrane resistance (25°C)
< 50 MΩ
Intelligent Sensor Management (ISM®)
Yes
Temperature probe
NTC 30 kΩ
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343185
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
-30 °C – 80 °C
Connector on Sensor
MultiPin™
Connector to Meter
Flexible (detachable cable)
Sample Temperature
<0°C
Cable Included
No
Sample Consistency
Liquid
Sample Composition
Aqueous
Typical Samples
Surface Water;Drinking Water;Soft drinks
Sensor Characteristics
Automatic Sensor Recognition;Temperature Probe;Chemically robust;Calibration History Stored;Low Temperature
Sample Volume
>= 20 mL
Minimum Sample Volume uL
20 mL
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go;NineFocus
Recommended Meter Models
SG68;NF2300;SG23;SG78;SD23;S8;SG98;SD20;NF2000;NF2340;S2
Unique Sensor Purpose
Low Temperatures (< 0 °C)
