pH & Electrochemistry

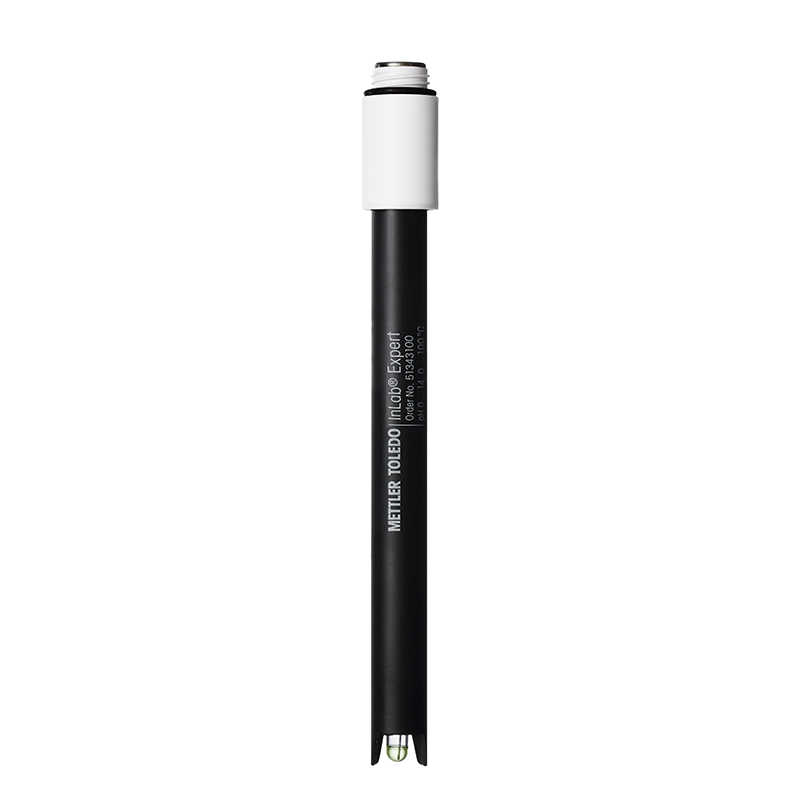

pH Sensor InLab® Expert
A combination pH electrode with PEEK shaft and S7 screw head. Designed for general applications in the lab and outdoor; robust and maintenance-free.
Specifications
Measuring range
pH 0 – 14
Type of junction
Open junction
Shaft Material
PEEK
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
XEROLYT® Polymer
Membrane glass
U
Membrane resistance (25°C)
< 250 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
Yes
Signal type
Analog
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 100 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Liquid;Sludge / slurry / suspension
Sample Composition
Aqueous
Typical Samples
Water;Beer, Suspended soil
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Mechanically robust
Sample Volume
>= 20 mL
INQUIRY
Get a tailored quote for the pH Sensor InLab® Expert.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
