pH & Electrochemistry

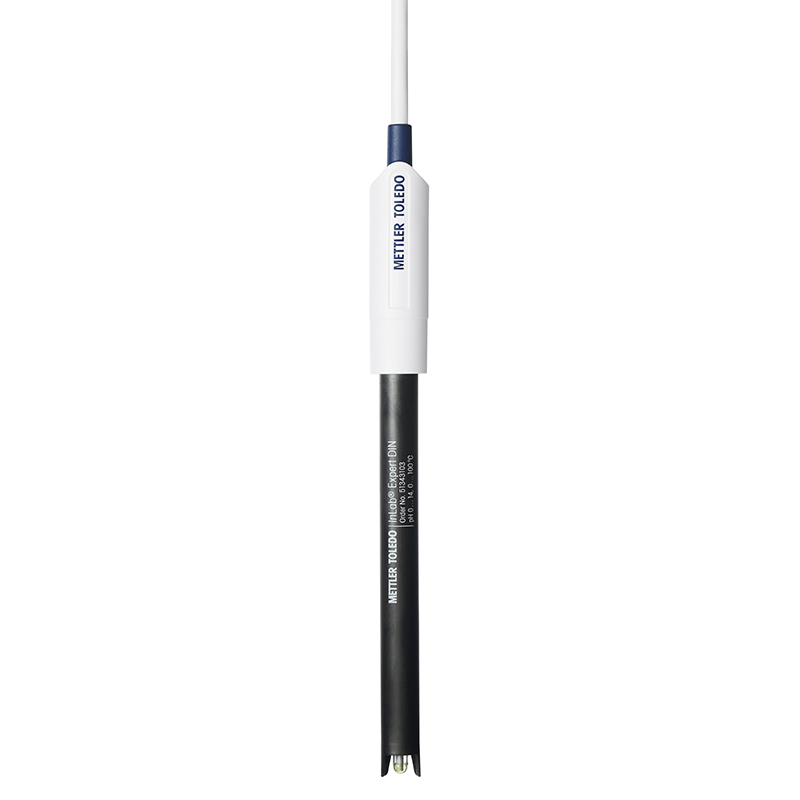

pH Sensor InLab® Expert DIN

Name: pH Sensor InLab® Expert DIN
Brand: METTLER TOLEDO

A combination pH electrode with integrated Pt1000 temperature probe, PEEK shaft and fixed cable. Designed for general applications in the lab and outdoor; robust and maintenance-free.

CategorypH & Electrochemistry

IndustryFood & Feed, Pharma, Petro Chemical, Testing Labs, Academia

ReferencePH-SENSOR-INLAB-EXPERT-DIN

Request a Quote →

Specifications

Measuring range

pH 0 – 14

Type of junction

Open junction

Shaft Material

PEEK

Sensor Type

Combined electrode

Parameter

Reference System

ARGENTHAL™ with Ag+-trap

Reference electrolyte

XEROLYT® Polymer

Membrane glass

Membrane resistance (25°C)

< 250 MΩ

Intelligent Sensor Management (ISM®)

Temperature probe

Pt1000

Low Maintenance

Yes

Signal type

Analog

Shaft length

120 mm

Shaft Diameter

12 mm

Cable {Length}

1.2 m

Temperature Range

0 °C – 100 °C

Connector on Sensor

Fixed 1.2 m cable

Sample Temperature

0°-100°C

Cable Included

Yes

Sample Consistency

Liquid;Sludge / slurry / suspension

Sample Composition

Aqueous

Typical Samples

Water;Beer, Suspended soil

Minimum Sample Volume uL

20 mL

Sensor Characteristics

Temperature Probe;Mechanically robust

Sample Volume

>= 20 mL

Connector to Meter

DIN 19262/4mm

INQUIRY

Get a tailored quote for the pH Sensor InLab® Expert DIN.

Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
