pH & Electrochemistry

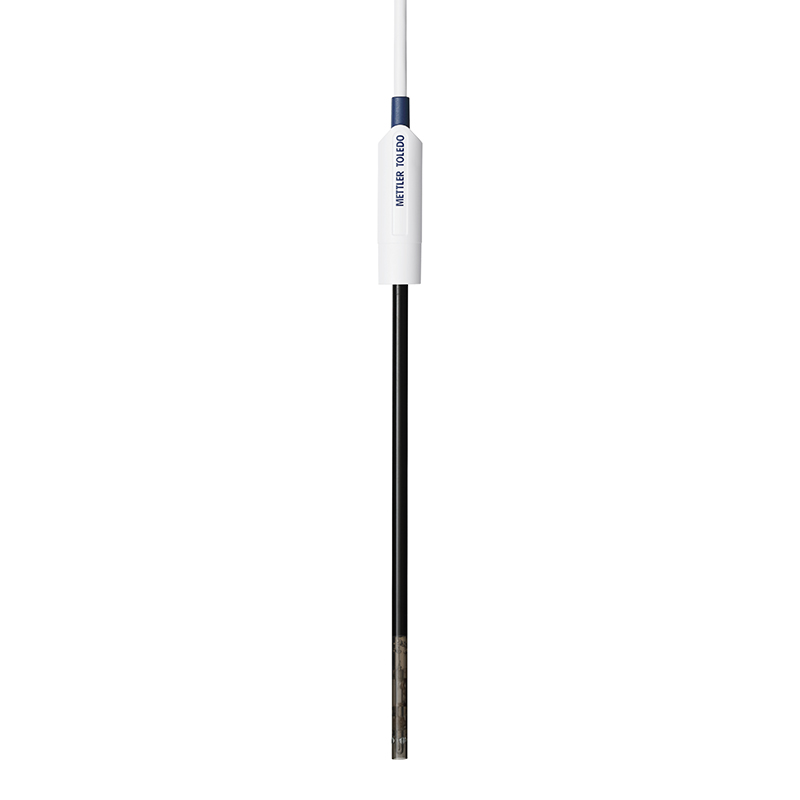

pH Sensor InLab® Flex-Micro
A semi-micro combination pH electrode with a flexible shaft and fixed cable. Ideal for measuring in small vessels such as test tubes and vials.
Specifications
Measuring range
pH 0 – 14
Type of junction
Porous PTFE
Shaft Material
Epoxy
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
Gel
Membrane glass
U
Membrane resistance (25°C)
< 600 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
Yes
Signal type
Analog
Shaft length
180 mm
Shaft Diameter
6 mm
Cable {Length}
1 m
Temperature Range
0 °C – 80 °C
Connector on Sensor
Fixed 1 m cable
Connector to Meter
BNC
Sample Temperature
0°-100°C
Cable Included
Yes
Sample Consistency
Liquid
Sample Composition
Contains proteins /TRIS / sulfides (aqueous)
Typical Samples
TRIS buffers;Enzyme solution;Proteinaceous samples
Sample Volume
500 µL - 20 mL
Minimum Sample Volume uL
500 µL
Sensor Characteristics
Mechanically robust;Small volume
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go;NineFocus
Recommended Meter Models
SG68;NF2300;SG23;SG78;SD23;S8;SG98;SD20;NF2000;NF2340;S2
Application Notes
Small-Volume Samples
Links to Application Notes
https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/pH-measurement-in-small-samples.html
Unique Sensor Purpose
Small Volumes (500 µL - 20 mL) and Flexible Shaft
