pH & Electrochemistry

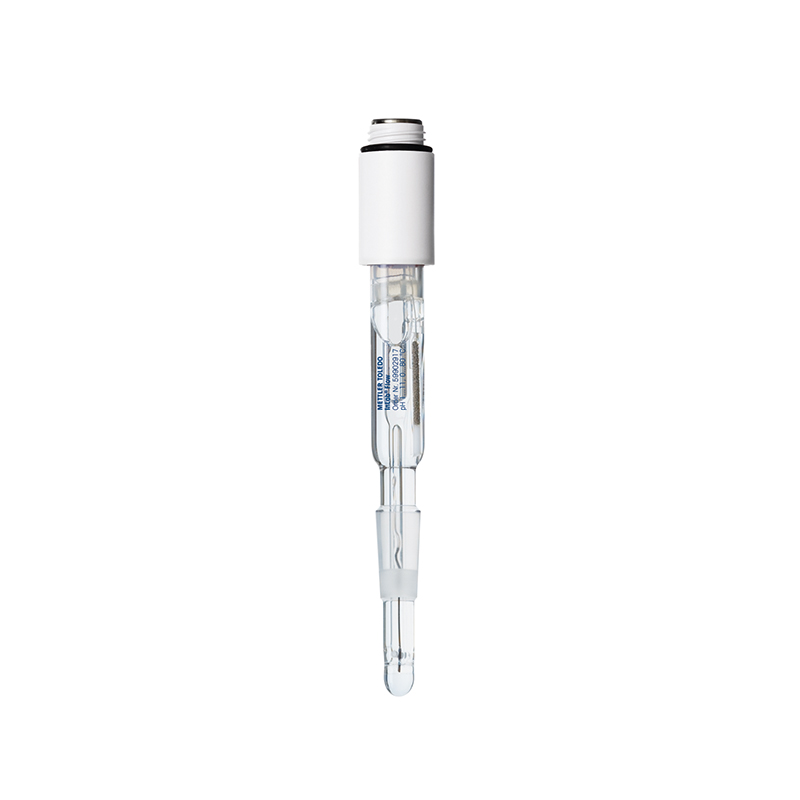

pH Sensor InLab® Flow
A glass-body, combination pH electrode with SteadyForceTM and S7 screw head for measurement in flow-through cell 611.
Specifications
Measuring range
pH 1 – 11
Type of junction
Double ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
SteadyForce™
Reference electrolyte
DPA Gel
Membrane glass
LoT
Membrane resistance (25°C)
< 250 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
Yes
Signal type
Analog
Shaft length
40 mm
Shaft Diameter
7 mm
Temperature Range
0 °C – 80 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Liquid;Emulsion;Sludge / slurry / suspension
Sample Composition
Aqueous
Typical Samples
Water;Cola
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Chemically robust
Sample Volume
>= 20 mL
INQUIRY
Get a tailored quote for the pH Sensor InLab® Flow.
Tell us the application, throughput, and any compliance requirements. An LDY account manager assigned to Food & Feed will respond within one business day.
