pH & Electrochemistry

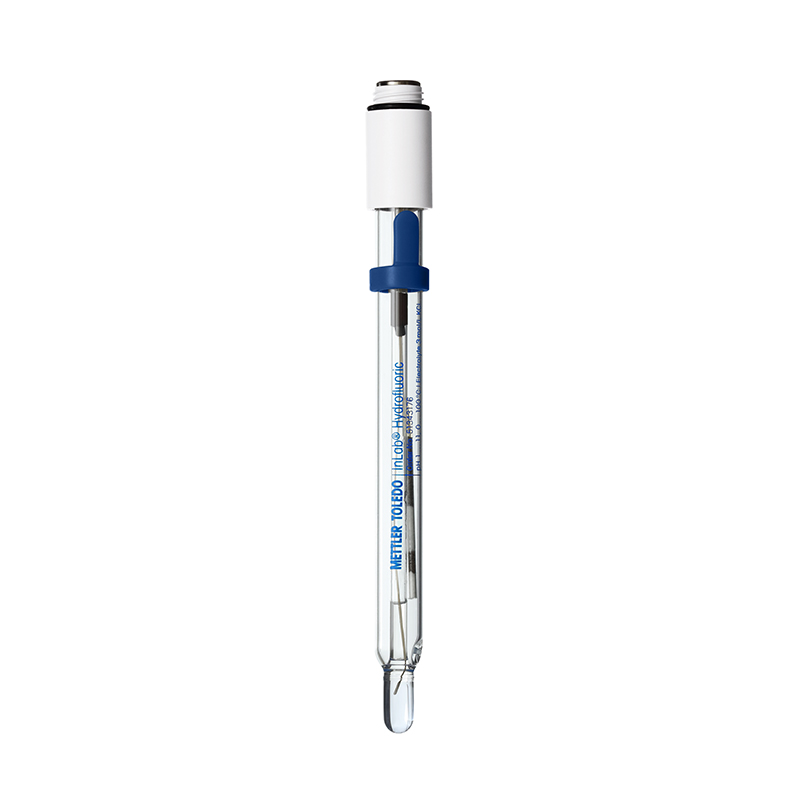

pH Sensor InLab® Hydrofluoric
A glass-body, combination pH electrode with S7 screw head. Designed for hydrofluoric acid containing samples.
Specifications
Measuring range
pH 1 – 11
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
3 mol/L KCl
Membrane glass
HF
Membrane resistance (25°C)
< 100 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 100 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Liquid
Sample Composition
Contains HF (aqueous)
Minimum Sample Volume uL
20 mL
Sample Volume
>= 20 mL
Typical Samples
Diluted HF solutions
HF Concentration
≤ 1 g/L
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go;NineFocus
Recommended Meter Models
SG68;NF2300;SG23;SG78;SD23;S8;SG98;SD20;NF2000;NF2340;S2
Unique Sensor Purpose
Hydrofluoric Acids
