pH & Electrochemistry

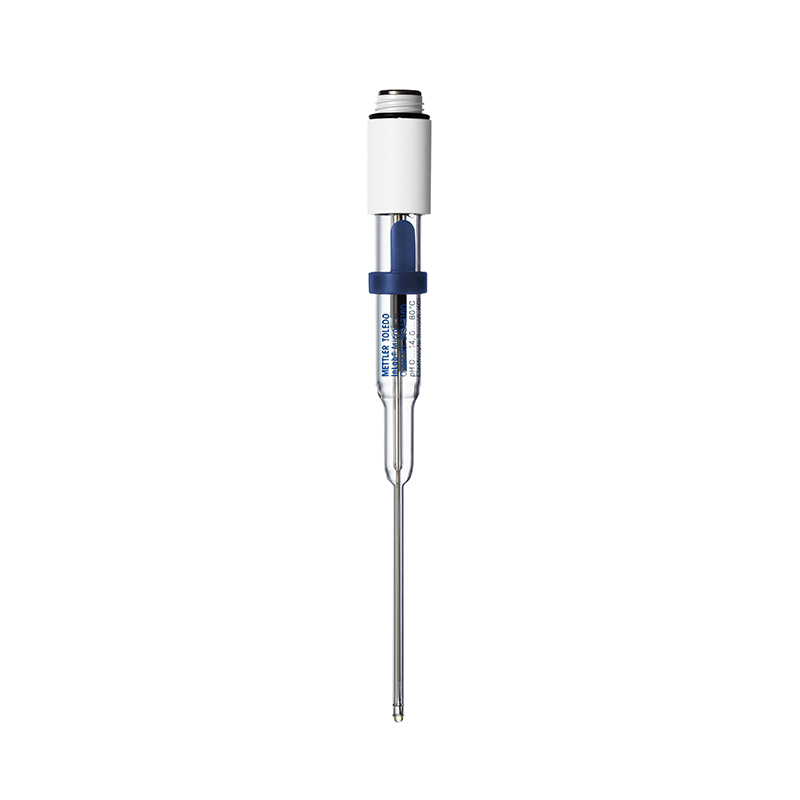

pH Sensor InLab® Micro
A glass-body, micro combination pH electrode with S7 screw head. Ideal for measuring in very small vessels such as vials, micro plates and cuvettes.
Specifications
Measuring range
pH 0 – 14
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
3 mol/L KCl
Membrane glass
U
Membrane resistance (25°C)
< 600 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
60 mm
Shaft Diameter
3 mm
Temperature Range
0 °C – 80 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Liquid
Sample Composition
Aqueous;Contains proteins /TRIS / sulfides (aqueous);High salt content (aqueous)
Typical Samples
TRIS buffers;Enzyme solution;Proteinaceous samples
Sample Volume
< 100 µL
Minimum Sample Volume uL
45 µL
Sensor Characteristics
Chemically robust;Small Volume
