pH & Electrochemistry

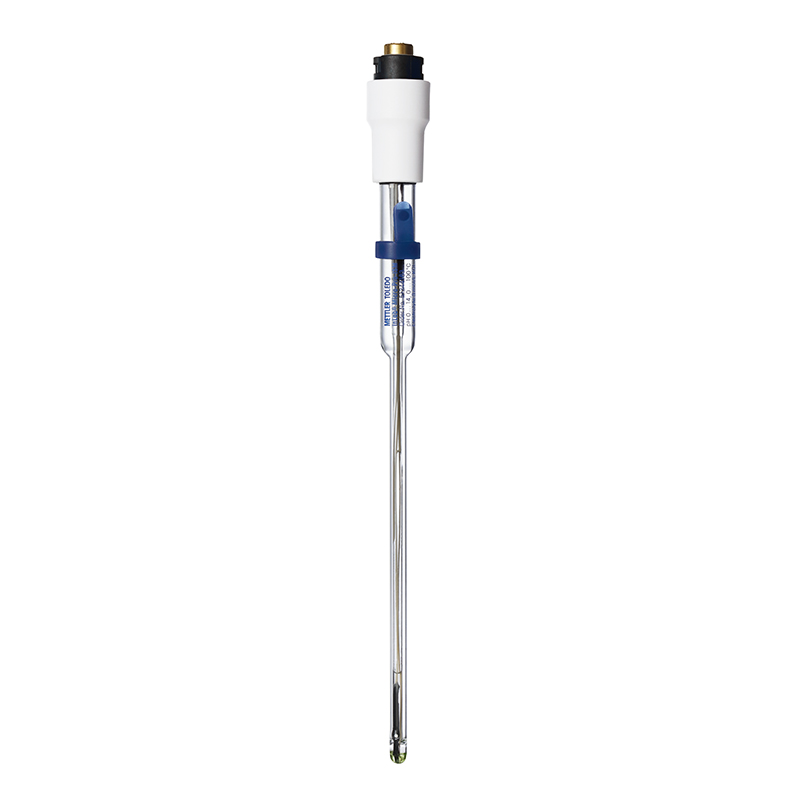

pH Sensor InLab® Micro Pro-ISM
A glass-body, micro combination pH electrode with integrated temperature sensor, MultiPinTM head and ISM. Ideal for measuring in very small vessels like test tubes, vials and cuvettes.
Specifications
Measuring range
pH 0 – 14
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
3 mol/L KCl
Membrane glass
U
Membrane resistance (25°C)
< 300 MΩ
Intelligent Sensor Management (ISM®)
Yes
Temperature probe
NTC 30 kΩ
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
130 mm
Shaft Diameter
5 mm
Temperature Range
0 °C – 100 °C
Connector on Sensor
MultiPin™
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Liquid
Sample Composition
Aqueous;Contains proteins /TRIS / sulfides (aqueous);High salt content (aqueous)
Typical Samples
TRIS buffers;Enzyme solution;Proteinaceous samples
Sample Volume
100 µL - 500 µL
Minimum Sample Volume uL
100 µL
Sensor Characteristics
Automatic Sensor Recognition;Temperature Probe;Chemically robust;Calibration History Stored;Small volume
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go
Recommended Meter Models
SG68;SG23;SG78;SD23;S8;SG98;SD20;S2
Application Notes
TRIS-Containing Samples;Small-Volume Samples
Links to Application Notes
https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/pH-measurement-in-small-samples.html;https://www.mt.com/global/en/home/library/know-how/lab-analytical-instruments/pH-measurement-TRIS-samples-pH-sensor.html
Unique Sensor Purpose
Small Volumes (100 µL - 20 mL)
