pH & Electrochemistry

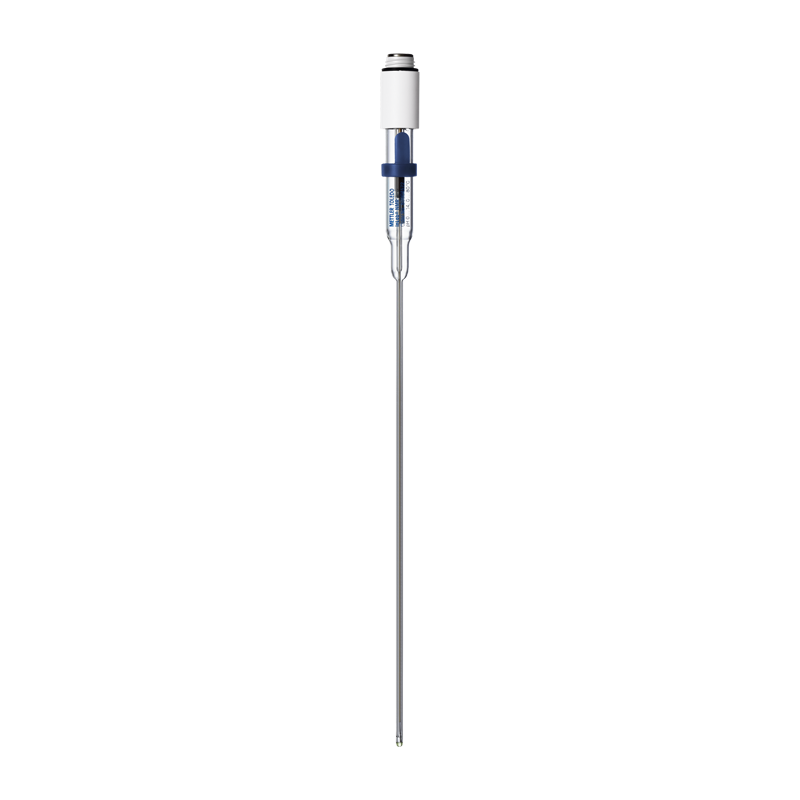

pH Sensor InLab® NMR
A glass-body, micro combination pH electrode with S7 screw head. Designed for measurements in NMR tubes.
Specifications
Measuring range
pH 0 – 14
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
3 mol/L KCl
Membrane glass
U
Membrane resistance (25°C)
< 1000 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
200 mm
Shaft Diameter
3 mm
Temperature Range
0 °C – 80 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Liquid
Sample Composition
Contains proteins /TRIS / sulfides (aqueous)
Typical Samples
TRIS buffers;NMR Probes;Proteinaceous samples
Sample Volume
< 100 µL
Minimum Sample Volume uL
45 µL
Sensor Characteristics
Chemically robust;Small Volume
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go;NineFocus
Recommended Meter Models
SG68;NF2300;SG23;SG78;SD23;S8;SG98;SD20;NF2000;NF2340;S2
Unique Sensor Purpose
Very Small Volumes (15 - 100 µL)
