pH & Electrochemistry

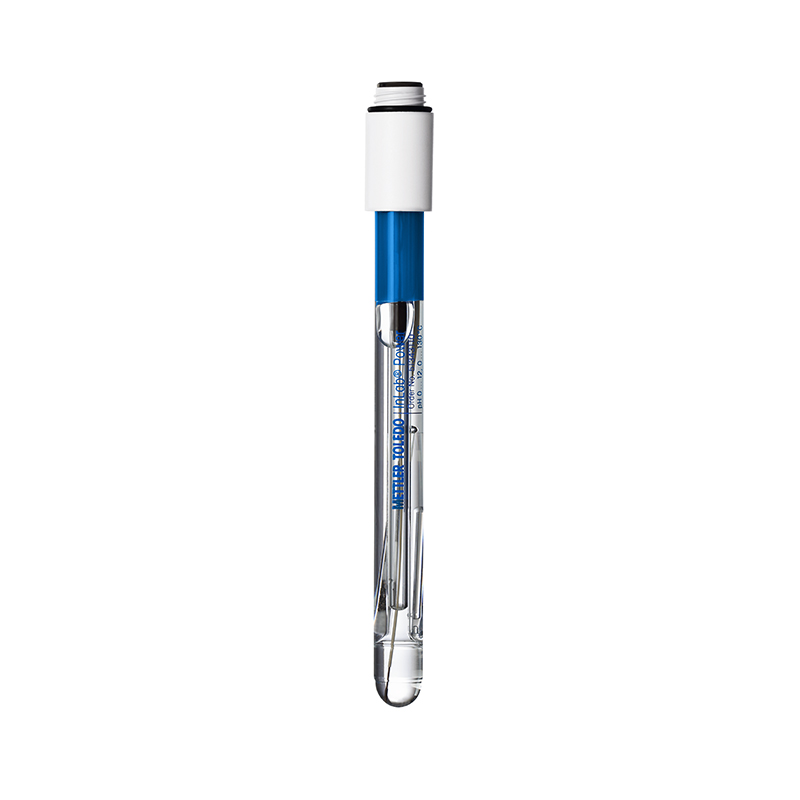

pH Sensor InLab® Power
A glass-body, combination pH electrode with SteadyForceTM and S7 screw head for general laboratory applications; highly reproducible, maintenance-free and autoclavable.
Specifications
Measuring range
pH 0 – 12
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
SteadyForce™
Reference electrolyte
DPA Gel
Membrane glass
A41
Membrane resistance (25°C)
< 600 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
Yes
Signal type
Analog
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 130 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample Temperature
>100°C
Cable Included
No
Sample Consistency
Liquid;Emulsion;Sludge / slurry / suspension
Sample Composition
Contains proteins /TRIS / sulfides (aqueous)
Typical Samples
Polymeric dispersions, Milk, Acid/Bases
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Chemically robust;High temperature
Sample Volume
>= 20 mL
