pH & Electrochemistry

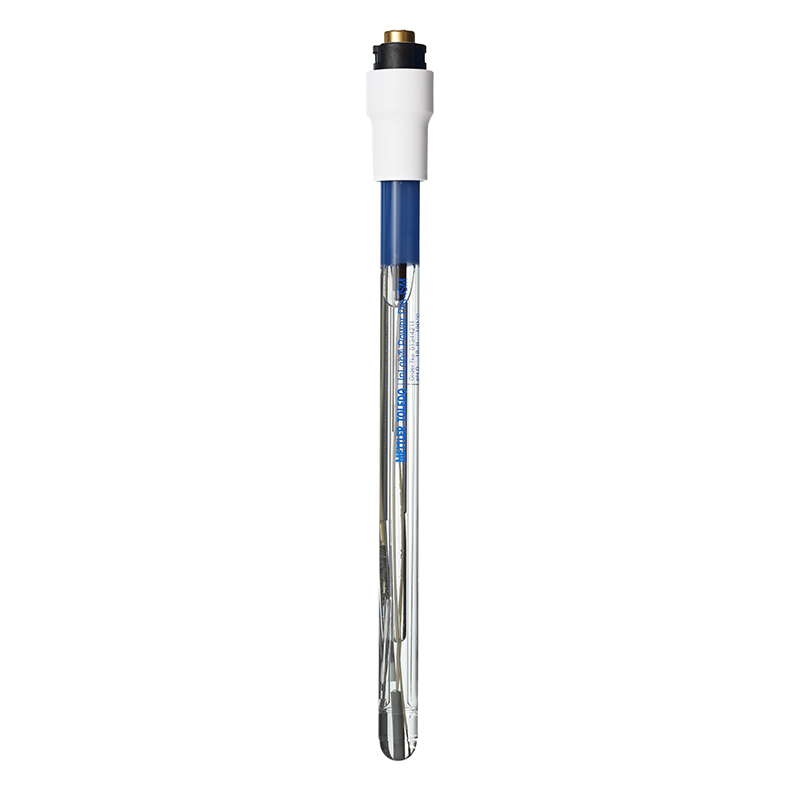

pH Sensor InLab® Power Pro-ISM
A glass-body, combination pH electrode with integrated temperature probe, SteadyForceTM and a MultiPinTM head. Designed for general laboratory applications; highly reproducible, maintenance-free and autoclavable.
Specifications
Measuring range
pH 0 – 12
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
SteadyForce™
Reference electrolyte
DPA Gel
Membrane glass
A41
Membrane resistance (25°C)
< 600 MΩ
Intelligent Sensor Management (ISM®)
Yes
Temperature probe
NTC 30 kΩ
Low Maintenance
Yes
Signal type
Analog
Shaft length
170 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 130 °C
Connector on Sensor
MultiPin™
Connector to Meter
Flexible (detachable cable)
Sample Temperature
>100°C
Cable Included
No
Sample Consistency
Liquid;Emulsion;Sludge / slurry / suspension
Sample Composition
Contains proteins /TRIS / sulfides (aqueous)
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Automatic Sensor Recognition;Temperature Probe;Chemically robust;Calibration History Stored;High temperature
Typical Samples
Polymeric dispersions, Milk, Acid/Bases
Sample Volume
>= 20 mL
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go;NineFocus
Recommended Meter Models
SG68;NF2300;SG23;SG78;SD23;S8;SG98;SD20;NF2000;NF2340;S2
Application Notes
Plant-Based Proteins;CMP Slurry;Milk
Links to Application Notes
https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/ph-and-conductivity-cmp-slurry.html;https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/pH-of-plant-based-proteins.html;https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/measurement-pH-of-milk.html
Unique Sensor Purpose
High Temperatures (> 130 °C)
