pH & Electrochemistry

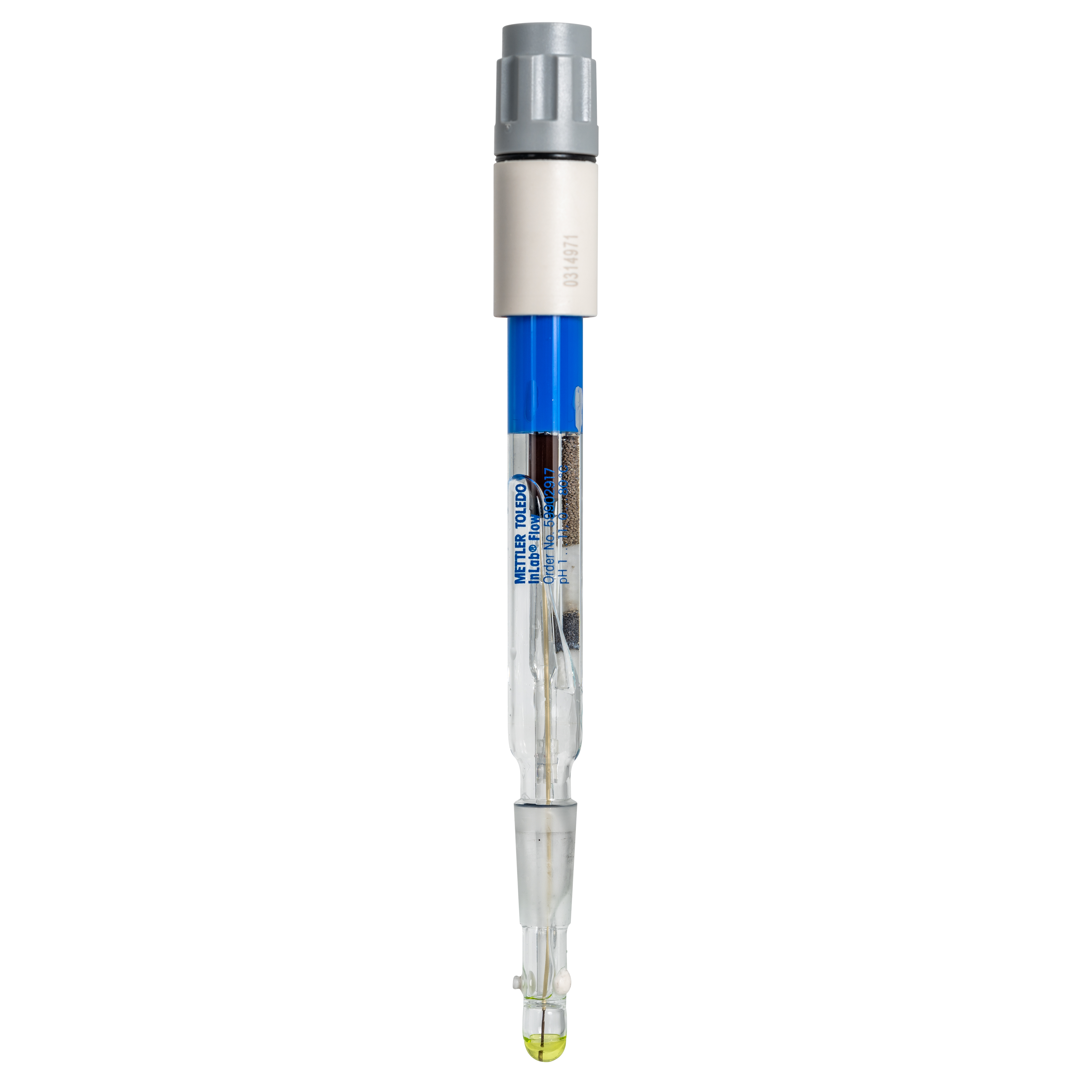

pH Sensor InLab® Pure
A glass-body, combination pH electrode with S7 screw head and a fixed sleeve junction for ion-weak-samples like pure water and deionized water.
Specifications
Measuring range
pH 1 – 11
Type of junction
Immovable glass sleeve
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
FRISCOLYT-B®
Membrane glass
LoT
Membrane resistance (25°C)
< 50 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343185
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 80 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Liquid
Sample Composition
Low ionic strength (aqueous)
Typical Samples
Distilled water;Water For Injection;Sterile water
Minimum sample volume µL
20 mL
Sensor Characteristics
Chemically robust
Sample Volume
>= 20 mL
Minimum Sample Volume uL
20 mL
