pH & Electrochemistry

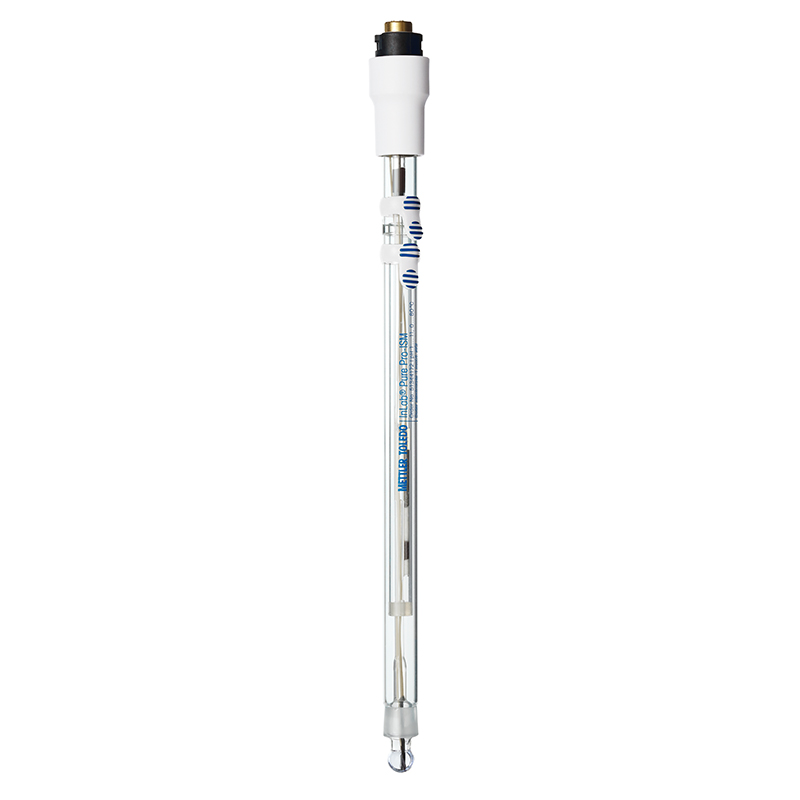

pH Sensor InLab® Pure Pro-ISM
A glass-body, combination pH electrode with integrated temperature probe, MultiPinTM head, bridge electrolyte and a fixed glass sleeve junction. Designed for ion-weak-samples like ultra-pure water, deionized water
Specifications
Measuring range
pH 1 – 11
Type of junction
Immovable glass sleeve
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
1 mol/L KCl;3 mol/L KCl
Membrane glass
LoT
Membrane resistance (25°C)
< 50 MΩ
Intelligent Sensor Management (ISM®)
Yes
Temperature probe
NTC 30 kΩ
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
170 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 80 °C
Connector on Sensor
MultiPin™
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Liquid
Sample Composition
Low ionic strength (aqueous)
Typical Samples
Distilled water;Water For Injection;Sterile water
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Automatic Sensor Recognition;Temperature Probe;Chemically robust;Calibration History Stored
Sample Volume
>= 20 mL
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go
Recommended Meter Models
SG68;SG23;SG78;SD23;S8;SG98;SD20;S2
Unique Sensor Purpose
Pure Water
Application Notes
Pure Water;Surfactant
Links to Application Notes
https://www.mt.com/global/en/home/library/white-papers/lab-analytical-instruments/pH-measurement-pure-water.html;https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/pH-of-surfactants.html
