pH & Electrochemistry

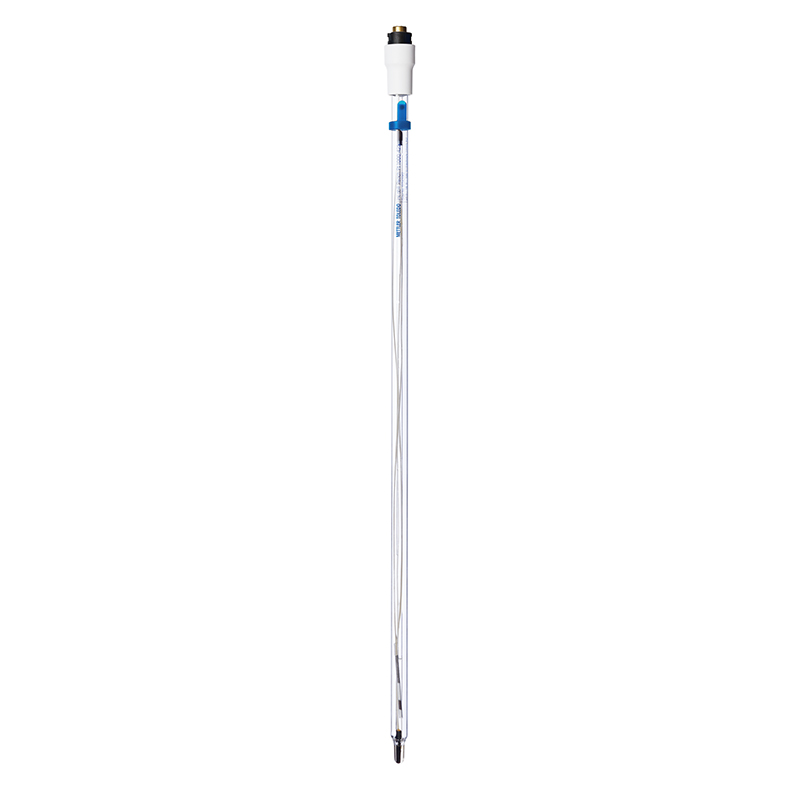

pH Sensor InLab® Reach Pt1000-425
A glass-body, combination pH electrode with integrated Pt1000 temperature probe, MultiPinTM head and 425 mm long shaft for general application.
Specifications
Measuring range
pH 0 – 14
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
3 mol/L KCl
Membrane glass
HA
Membrane resistance (25°C)
< 600 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
Pt1000
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
425 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 100 °C
Connector on Sensor
MultiPin™
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Liquid
Sample Composition
Aqueous;Contains proteins /TRIS / sulfides (aqueous)
Typical Samples
Soft Drinks;TRIS buffers;Brine
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Temperature Probe;Chemically robust
Sample Volume
>= 20 mL
