pH & Electrochemistry

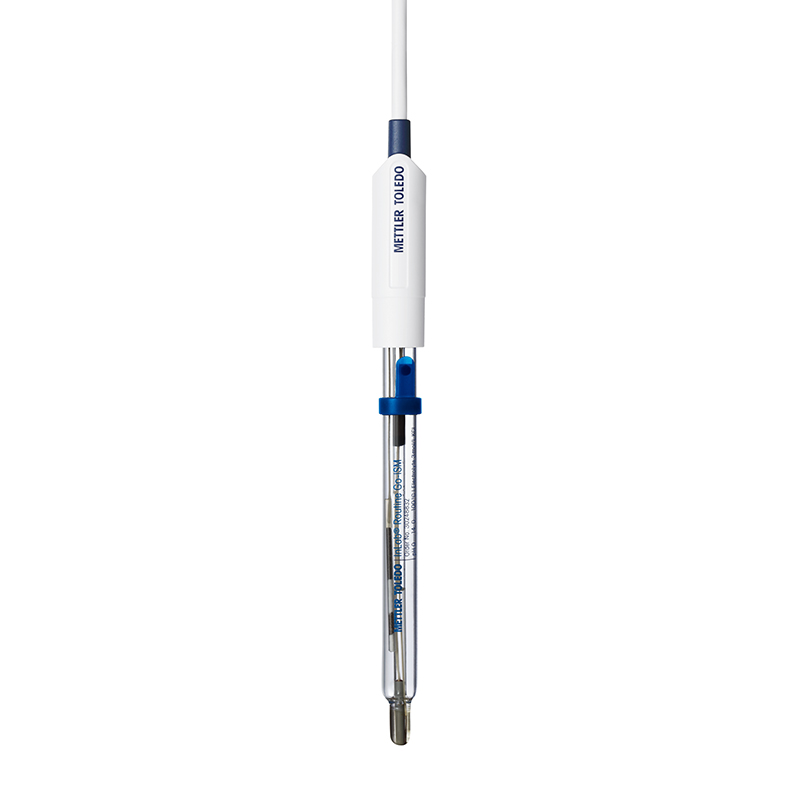

pH Sensor InLab® Routine Go-ISM
A glass-body, combination pH electrode with integrated temperature probe, fixed cable and ISM. Designed for portable applications in the lab and outdoor; fast and highly chemical resistant.
Specifications
Measuring range
pH 0 – 14
Type of junction
Ceramic
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
3 mol/L KCl
Membrane glass
HA
Membrane resistance (25°C)
< 600 MΩ
Intelligent Sensor Management (ISM®)
Yes
Temperature probe
NTC 30 kΩ
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
120 mm
Shaft Diameter
12 mm
Cable {Length}
1.8 m
Temperature Range
0 °C – 100 °C
Connector on Sensor
Fixed 1.8 m cable
Connector to Meter
BNC/RCA (Cinch)
Sample Temperature
0°-100°C
Cable Included
Yes
Sample Consistency
Liquid
Sample Composition
Aqueous;Contains proteins /TRIS / sulfides (aqueous);High salt content (aqueous)
Typical Samples
Soft Drinks;TRIS buffers;Brine
Minimum sample volume µL
20 mL
Sensor Characteristics
Automatic Sensor Recognition;Temperature Probe;Chemically robust;Calibration History Stored;IP67
Sample Volume
>= 20 mL
Minimum Sample Volume uL
20 mL
Recommended Meters
SevenGo Duo;Seven2Go
Recommended Meter Models
SG68;SG23;SG78;S8;SG98;S2
Unique Sensor Purpose
pH < 2 and > 12
Application Notes
Protein-Containing Samples;TRIS-Containing Samples
Links to Application Notes
https://www.mt.com/global/en/home/library/know-how/lab-analytical-instruments/pH-measurement-TRIS-samples-pH-sensor.html;https://www.mt.com/global/en/home/library/know-how/lab-analytical-instruments/pH-measurement-Protein-samples-pH-sensor.html
