pH & Electrochemistry

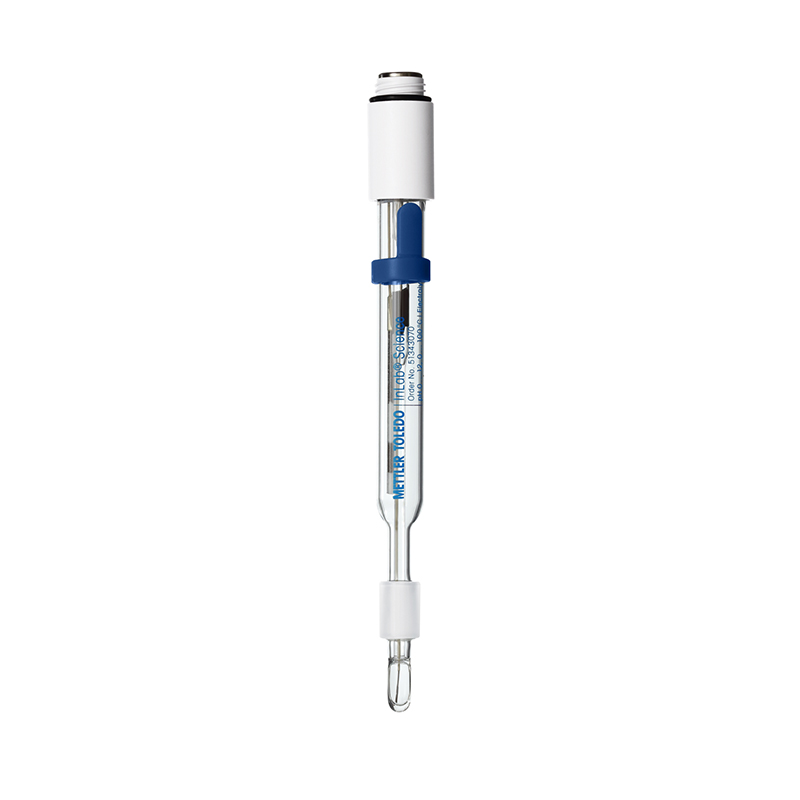

pH Sensor InLab® Science
A glass-body, combination pH electrode with S7 screw head and movable glass sleeve junction. Designed for difficult applications like organic solvents, emulsions and protein containing samples.
Specifications
Measuring range
pH 0 – 12
Type of junction
Movable glass sleeve
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
3 mol/L KCl
Membrane glass
A41
Membrane resistance (25°C)
< 600 MΩ
Intelligent Sensor Management (ISM®)
No
Temperature probe
No
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
120 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 100 °C
Connector on Sensor
S7
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Liquid
Sample Composition
Non-Aqueous
Typical Samples
Organic Solvents;Gasoline;Alcohols
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Chemically robust
Sample Volume
>= 20 mL
