pH & Electrochemistry

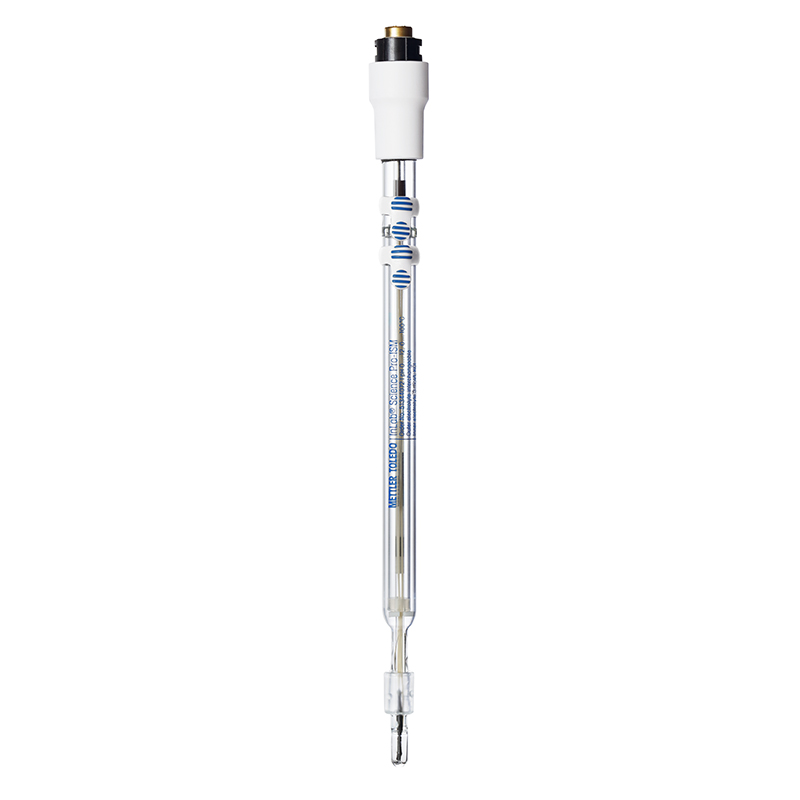

pH Sensor InLab® Science Pro-ISM
A glass-body, combination pH electrode with integrated temperature probe, MultiPinTM head, bridge electrolyte and movable glass sleeve junction. Designed for difficult applications like organic solvents, emulsions and protein containing samples.
Specifications
Measuring range
pH 0 – 12
Type of junction
Movable glass sleeve
Shaft Material
Glass
Sensor Type
Combined electrode
Parameter
pH
Reference System
ARGENTHAL™ with Ag+-trap
Reference electrolyte
3 mol/L KCl
Membrane glass
A41
Membrane resistance (25°C)
< 600 MΩ
Intelligent Sensor Management (ISM®)
Yes
Temperature probe
NTC 30 kΩ
Low Maintenance
No
Signal type
Analog
Reference electrolyte Order no.
51343180
Shaft length
170 mm
Shaft Diameter
12 mm
Temperature Range
0 °C – 100 °C
Connector on Sensor
MultiPin™
Connector to Meter
Flexible (detachable cable)
Sample Temperature
0°-100°C
Cable Included
No
Sample Consistency
Liquid
Sample Composition
Non-Aqueous
Typical Samples
Organic Solvents;Gasoline;Alcohols
Minimum Sample Volume uL
20 mL
Sensor Characteristics
Automatic Sensor Recognition;Temperature Probe;Chemically robust;Calibration History Stored
Sample Volume
>= 20 mL
Recommended Meters
SevenGo Duo;SevenDirect;Seven2Go
Recommended Meter Models
SG68;SG23;SG78;SD23;S8;SG98;SD20;S2
Unique Sensor Purpose
Organic Solvents
Application Notes
Organic Solvents;Silver Nitrate;e-Liquids;Protein-Containing Samples;TRIS-Containing Samples;Hand Sanitizer;Paints
Links to Application Notes
https://www.mt.com/global/en/home/library/know-how/lab-analytical-instruments/pH-measurement-TRIS-samples-pH-sensor.html;https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/ph-of-silver-nitrate.html;https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/pH-of-paints.html;https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/measurement-pH-organic-solvents.html;https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/pH-of-eliquids.html;https://www.mt.com/global/en/home/library/applications/lab-analytical-instruments/measurement-pH-of-hand-sanitizer.html;https://www.mt.com/global/en/home/library/know-how/lab-analytical-instruments/pH-measurement-Protein-samples-pH-sensor.html
